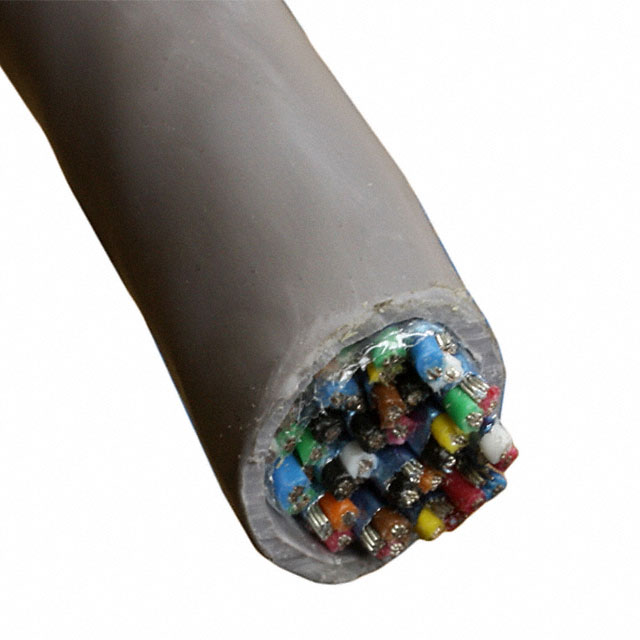

6020C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 38COND 22AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Conductor Material | Shield Type | Cable Type | Number of Conductors | Wire Gauge | Usage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Slate | Drain Wire | -20 ░C | 60 °C | 1.6 mm | 0.063 in | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Copper Tinned | Foil | Multi-Pair | 38 | 22 AWG | Communication Control | 152.4 m | 500 ft | 0.593 " | 15.06 mm | 300 VDC | ||
ALPHA WIRE | Aluminum | 100 % | Slate | Drain Wire | -20 ░C | 60 °C | 1.6 mm | 0.063 in | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Copper Tinned | Foil | Multi-Pair | 38 | 22 AWG | Communication Control | 0.593 " | 15.06 mm | 300 VDC | 100 ft | 30.5 m |
