71K607 Series
Manufacturer: Rosenberger
Beta
⌘K

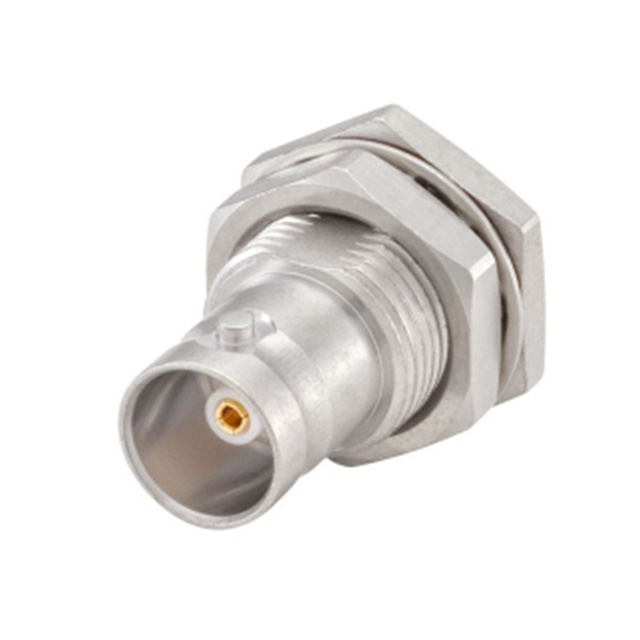

CONN BNC JACK STR 75OHM CRIMP
| Part | Includes | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Body Finish | Mating Cycles | Center Contact Plating | Cable Group | Mounting Type | Connector Type | Contact Termination | Fastening Type | Center Contact Material | Shield Termination | Impedance | Mounting Feature | Number of Ports | Connector Style | Housing Color | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Brass | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 400 V | White Bronze | 500 | Gold | 187A RG-179B | Panel Mount | Female Socket Jack | Crimp | Bayonet Lock | Beryllium Copper | Crimp | 75 Ohms | Bulkhead - Front Side Nut | 1 | BNC | Silver | 4 GHz |
