M2029TX Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Features	Voltage Rating - DC	Switch Function	Actuator Type	Termination Style	Mechanical Life	Voltage Rating - AC	Approval Agency	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Actuator Marking	Electrical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches M2029TXW13-GA	Epoxy Sealed Terminals	30 V	On-Off-Mom	Paddle	PC Pin	50000 Cycles	125 V	CSA UL	3 A 6 A	Black	Through Hole	No Marking	25000 Steps	DPDT	85 °C	-30 ░C

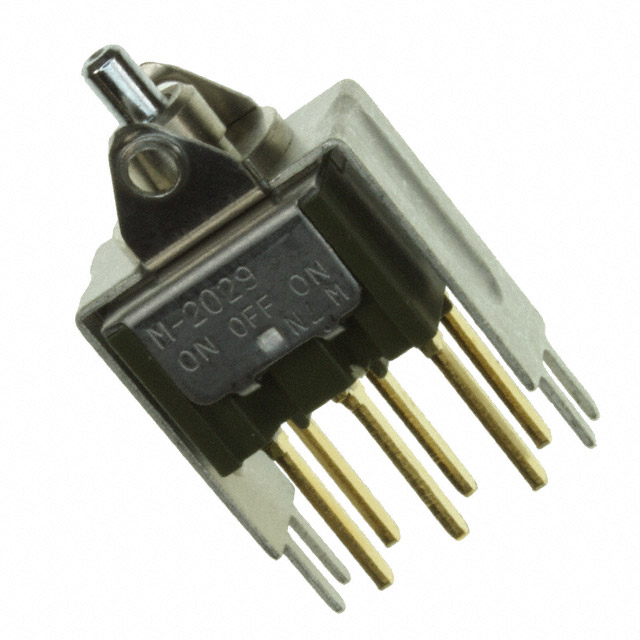

NKK Switches M2029TXG15	Epoxy Sealed Terminals	28 V	On-Off-Mom	Actuator Arm Cap Required	PC Pin	50000 Cycles	28 V	CSA UL	0.4 VA		Through Hole	Varies by Cap	50000 Cycles	DPDT	85 °C	-30 ░C
NKK Switches M2029TXW13-EA	Epoxy Sealed Terminals	30 V	On-Off-Mom	Paddle	PC Pin	50000 Cycles	125 V	CSA UL	3 A 6 A	Black	Through Hole	No Marking	25000 Steps	DPDT	85 °C	-30 ░C
NKK Switches M2029TXW13-DC	Epoxy Sealed Terminals	30 V	On-Off-Mom	Concave	PC Pin	50000 Cycles	125 V	CSA UL	3 A 6 A	Red	Through Hole	No Marking	25000 Steps	DPDT	85 °C	-30 ░C
