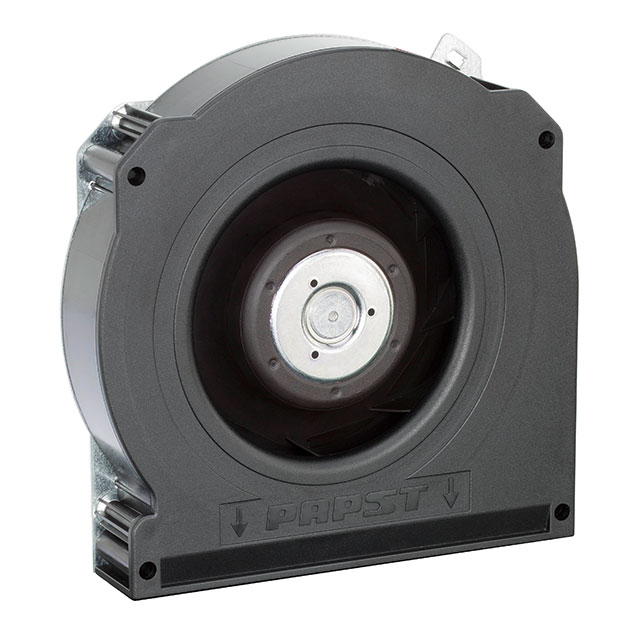

RLF100 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN BLOWER CF 127X25.4MM 48VDC
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Approval Agency | Fan Type | Bearing Type | Voltage - Rated | Features | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Width [y] | Termination | Power (Watts) | Noise | Static Pressure | Static Pressure | Weight | Weight | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 360 mA | Fiberglass Reinforced Plastic | Glass Filled Plastic | 53 VDC | 43 VDC | 72500 Hrs | 5 " | Square/Rounded | 5 in | CCC CE CSA UL VDE | Blower Centrifugal | Ball | 48 VDC | PWM Control Speed Sensor (Tach) | 6400 RPM | -20 ░C | 70 °C | IP20 | 25.4 mm | 4 Wire Leads | 17 W | 60 dB(A) | 2.71 in H2O | 675 Pa | 322.05 g | 0.71 lb | 1.06 mł/min | 37.7 CFM |
 ebm-papst Inc. | Fiberglass Reinforced Plastic | Fiberglass Reinforced Plastic Steel | 60 V | 36 VDC | 80000 Hrs | 5 " | Square/Rounded | 5 in | CE CSA UL VDE | Blower Centrifugal | Ball | 48 VDC | 5100 RPM | -4 °F | 167 °F | IP54 - Dust Protected Water Resistant | 25.4 mm | 2 Wire Leads | 8.6 W | 64 dB(A) | 1.06 mł/min | 37.7 CFM | ||||||
 ebm-papst Inc. | Fiberglass Reinforced Plastic | Fiberglass Reinforced Plastic | 30 V | 16 VDC | 80000 Hrs | 5 " | Square/Rounded | 5 in | Blower Centrifugal | Ball | 24 VDC | Locked Rotor Protection Speed Sensor (Tach) | 5100 RPM | -4 °F | 167 °F | IP54 - Dust Protected Water Resistant | 25.4 mm | 3 Wire Leads | 8 W | 1.06 mł/min | 37.7 CFM |
