560134 Series

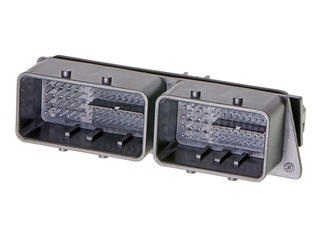

2.40mm, 3.00mm, 5.00mm Pitch Compactus PCB Header, 146 Circuits, Right-Angle, Black
Manufacturer: Molex
Catalog
2.40mm, 3.00mm, 5.00mm Pitch Compactus PCB Header, 146 Circuits, Right-Angle, Black
Beta
⌘K
2.40mm, 3.00mm, 5.00mm Pitch Compactus PCB Header, 146 Circuits, Right-Angle, Black
2.40mm, 3.00mm, 5.00mm Pitch Compactus PCB Header, 146 Circuits, Right-Angle, Black
2.40mm, 3.00mm, 5.00mm Pitch Compactus PCB Header, 146 Circuits, Right-Angle, Black
| Part | Number of Positions | Insulation Color | Pitch - Mating | Pitch - Mating | Shrouding | Termination | Contact Finish - Post | Mounting Type | Insulation Height | Insulation Height | Contact Material | Number of Positions Loaded | Style | Current Rating (Amps) | Voltage Rating | Number of Rows | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 146 | Black | 0.197 " | 5 mm | Shrouded - 4 Wall | Solder | Tin | Right Angle Through Hole | 1.193 in | 30.3 mm | Copper Alloy | All | Board to Cable/Wire | 15 A | 250 V | 6 | Rectangular | 120 °C | -40 C | Polybutylene Terephthalate (PBT) Glass Filled | 3.6 mm | 0.142 in | Male Pin | Header | Push-Pull |
