TMPG06 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

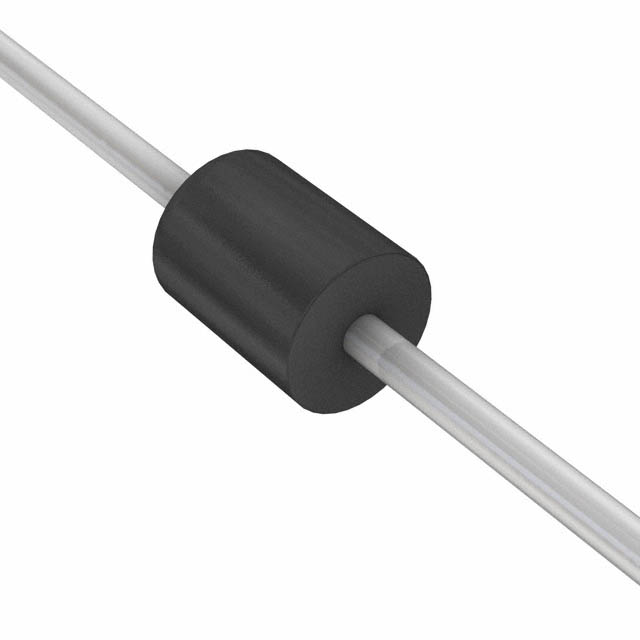

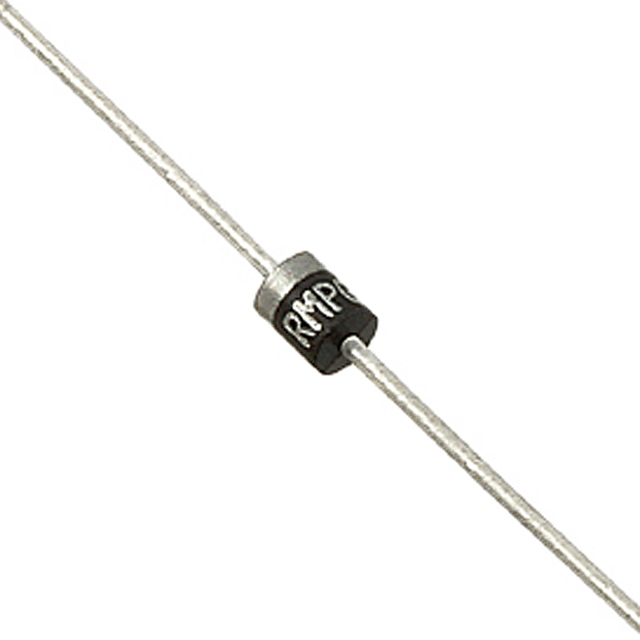

TVS DIODE 14.5VWM 26.5VC MPG06
| Part | Unidirectional Channels [custom] | Power Line Protection | Grade | Voltage - Breakdown (Min) [Min] | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Voltage - Clamping (Max) @ Ipp [Max] | Package / Case | Mounting Type | Current - Peak Pulse (10/1000µs) | Type | Voltage - Clamping (Max) @ Ipp | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 1 | Automotive | 16.2 V | 14.5 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 26.5 V | MPG06 Axial | Through Hole | 15.1 A | Zener | |||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 24.3 V | 21.8 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 39.1 V | MPG06 Axial | Through Hole | 10.2 A | Zener | |||
Vishay General Semiconductor - Diodes Division | 1 | 25.7 V | 23.1 V | 400 W | MPG06 | 185 °C | -65 °C | MPG06 Axial | Through Hole | 10.7 A | Zener | 37.5 V | General Purpose | ||||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 10.8 V | 9.72 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 17.3 V | MPG06 Axial | Through Hole | 23.1 A | Zener | |||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 8.19 V | 7.37 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 13.8 V | MPG06 Axial | Through Hole | 21.7 A | Zener | |||
 Vishay General Semiconductor - Diodes Division | 1 | Automotive | 31.4 V | 28.2 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 45.7 V | MPG06 Axial | Through Hole | 8.8 A | Zener | |||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 19.4 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 34.2 V | MPG06 Axial | Through Hole | 11.5 A | Zener | ||||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 10.5 V | 9.4 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 15.6 V | MPG06 Axial | Through Hole | Zener | ||||
Vishay General Semiconductor - Diodes Division | 1 | 8.65 V | 7.78 V | 400 W | MPG06 | 185 °C | -65 °C | 13.4 V | MPG06 Axial | Through Hole | 22.4 A | Zener | General Purpose | ||||
Vishay General Semiconductor - Diodes Division | 1 | Automotive | 11.4 V | 10.2 V | 400 W | MPG06 | 185 °C | -65 °C | AEC-Q101 | 16.7 V | MPG06 Axial | Through Hole | 24 A | Zener |
