32K482 Series
Manufacturer: Rosenberger
Beta
⌘K

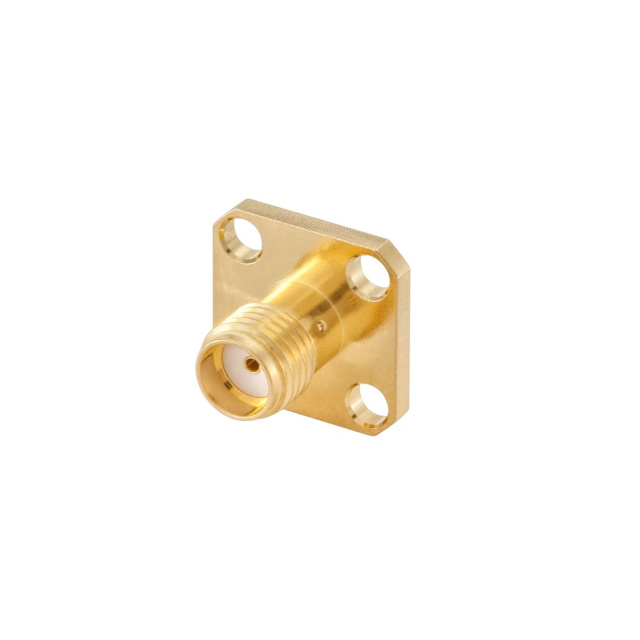

SMA PANEL JACK
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Voltage Rating | Shield Termination | Housing Color | Mounting Type | Connector Style | Frequency - Max [Max] | Connector Type | Center Contact Material | Impedance | Fastening Type | Contact Termination | Number of Ports | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | White Bronze | 480 V | Solder | Silver | Panel Mount | SMA | 12.4 GHz | Female Socket Jack | Beryllium Copper | 50 Ohms | Threaded | Solder | 1 | Flange |
