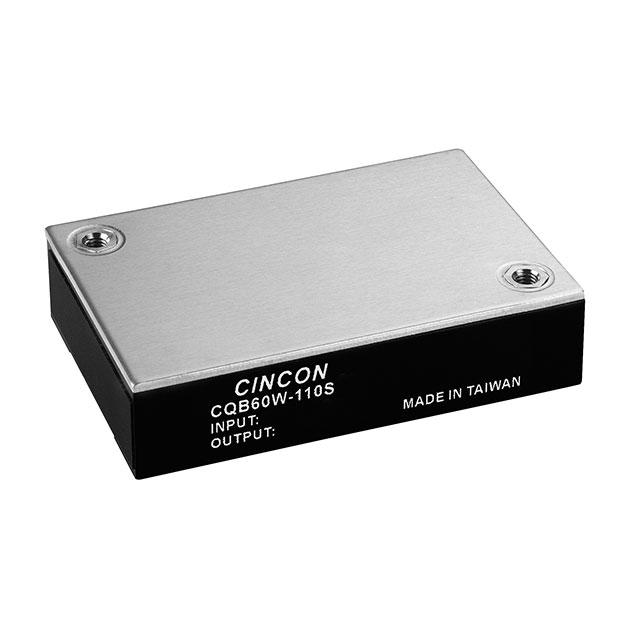

CQB60W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 28V 60W

Part	Applications	Supplier Device Package	Features	Voltage - Isolation	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Standard Number	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency	Current - Output (Max)
Cincon Electronics Co. LTD CQB60W-110S28	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	90 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	28 V	Through Hole	2.14 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S05N	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active Low Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	91 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	5 V	Through Hole	12 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S48N	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active Low Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	89 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	48 V	Through Hole	1.25 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S48	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	89 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	48 V	Through Hole	1.25 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S15	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	90 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	15 V	Through Hole	4 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S12N	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active Low Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	92 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	12 V	Through Hole		60 W	Module	1	160 V	CB CE cURus	5 A
Cincon Electronics Co. LTD CQB60W-110S28N	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active Low Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	90 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	28 V	Through Hole	2.14 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S24	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	90 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	24 V	Through Hole	2.5 A	60 W	Module	1	160 V	CB CE cURus
Cincon Electronics Co. LTD CQB60W-110S12	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	92 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	12 V	Through Hole		60 W	Module	1	160 V	CB CE cURus	5 A
Cincon Electronics Co. LTD CQB60W-110S05	ITE (Commercial) Railway	Module	OCP OTP OVP Remote On/Off SCP UVLO	3000 V	Active High Enable	-40 °C	100 °C	Isolated Module	50155 60950-1	43 V	91 %	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	5 V	Through Hole	12 A	60 W	Module	1	160 V	CB CE cURus
