325-070 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 70 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Read Out	Pitch	Pitch	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Type	Gender	Contact Finish	Number of Rows [custom]	Card Thickness	Card Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Number of Positions/Bay/Row	Termination	Contact Type
EDAC Inc. 325-070-540-209	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	70	35	Wire Wrap	Cantilever
EDAC Inc. 325-070-500-207	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening			70	35	Solder Eyelet(s)	Cantilever
EDAC Inc. 325-070-540-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in				70	35	Wire Wrap	Cantilever
EDAC Inc. 325-070-500-209	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	70	35	Solder Eyelet(s)	Cantilever
EDAC Inc. 325-070-500-208	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening			70	35	Solder Eyelet(s)	Cantilever

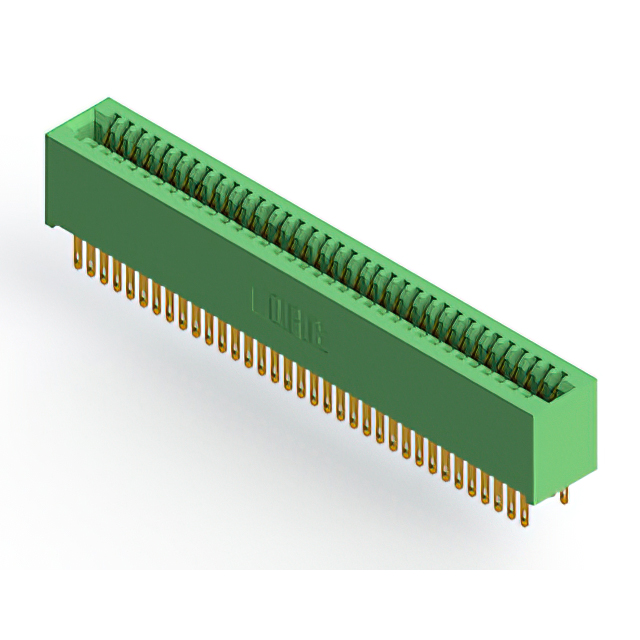

EDAC Inc. 325-070-500-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in				70	35	Solder Eyelet(s)	Cantilever
EDAC Inc. 325-070-540-207	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening			70	35	Wire Wrap	Cantilever
EDAC Inc. 325-070-520-209	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	70	35	Solder	Cantilever
EDAC Inc. 325-070-520-201	Diallyl Phthalate (DAP)	2	Dual	0.1 "	2.54 mm	Through Hole	Green	-65 ░C	125 °C	0.25 Ám	10 Áin	Copper Alloy	Non Specified - Dual Edge	Female	Gold	2	3.18 mm	0.125 in				70	35	Solder	Cantilever
