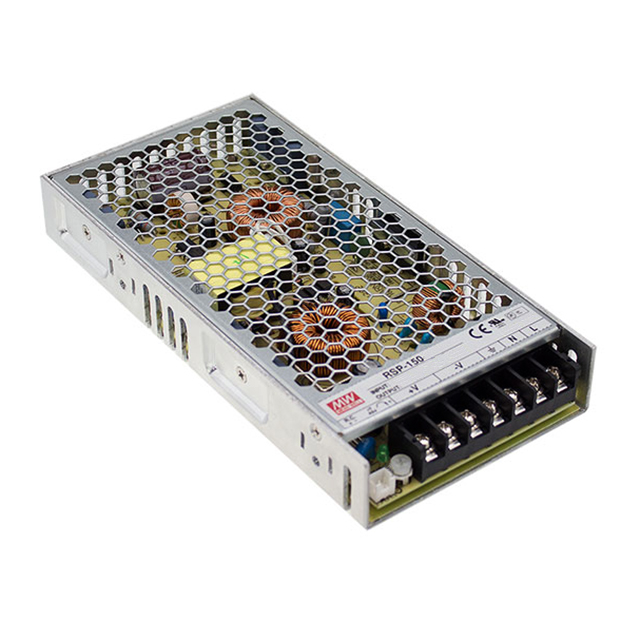

RSP-150 Series

Catalog

AC/DC CONVERTER 48V 154W

Part	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Voltage - Isolation	Mounting Type	Efficiency	Features	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs
MEAN WELL USA Inc. RSP-150-48	CB CCC CE cURus TUV	154 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	48 V	4000 V	Chassis Mount	90 %	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	3.2 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
MEAN WELL USA Inc. RSP-150-13.5	CB CCC CE cURus TUV	151 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	13.5 V	4000 V	Chassis Mount	87.5 %	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	11.2 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
MEAN WELL USA Inc. RSP-150-12	CB CCC CE cURus TUV	150 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	12 V	4000 V	Chassis Mount	90 %	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	12.5 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
MEAN WELL USA Inc. RSP-150-27	CB CCC CE cURus TUV	151 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	27 V	4000 V	Chassis Mount		Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	5.6 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
MEAN WELL USA Inc. RSP-150-7.5	CB CCC CE cURus TUV	150 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	7.5 V	4000 V	Chassis Mount	88.5 %	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	20 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
MEAN WELL USA Inc. RSP-150-3.3	CB CCC CE cURus TUV	99 W	1.18 in	99 mm	3.9 "	7.83 in	30 mm	199 mm	3.3 V	4000 V	Chassis Mount	81.5 %	Adjustable Output PFC Remote On/Off Universal Input	ITE (Commercial)	30 A	85 VAC 120 VDC	264 VAC 370 VDC	-30 °C	70 °C	Enclosed	1
