MSPM101 Series

Catalog

SWITCH PUSHBUTTON SPST-NC 100MA

Part	Electrical Life	Type	Mounting Type	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Features

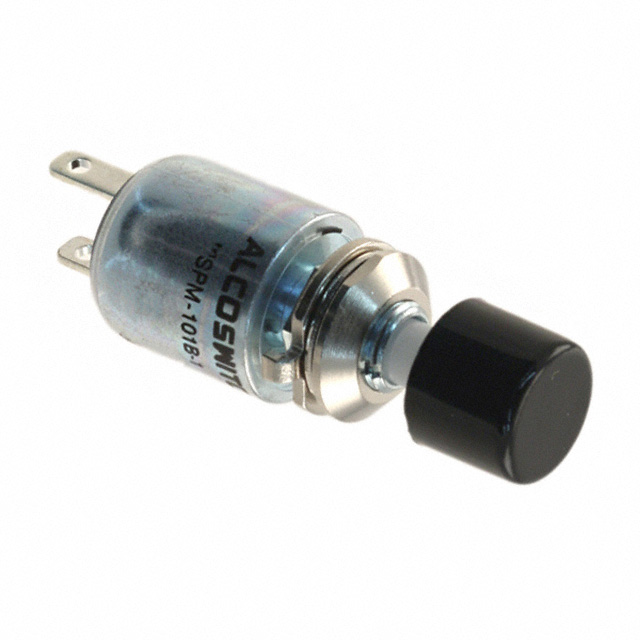

TE Connectivity AMP Connectors MSPM101B104	50000 Cycles	Standard	Panel Mount Rear	Solder Lug	0.25 in	On-Mom	50 VDC	100 mA	No Marking	Black	-10 °C	80 °C	SPST-NC	Button Round

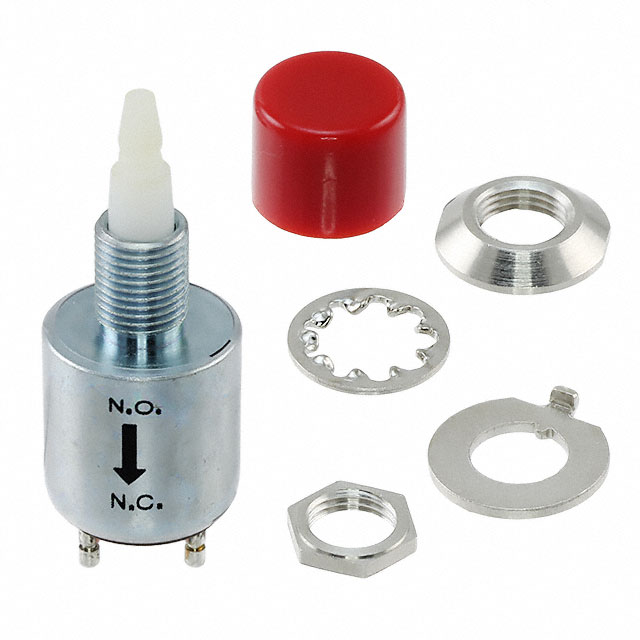

TE Connectivity AMP Connectors MSPM101C104	50000 Cycles	Standard	Panel Mount Rear	Solder Lug	0.25 in	Off-Mom	50 VDC	100 mA	No Marking	Red	-10 °C	80 °C	SPST-NO	Button Round
TE Connectivity AMP Connectors MSPM101BS04	50000 Cycles	Standard	Panel Mount Rear	Solder Turret	0.25 in	On-Mom	50 VDC	100 mA	No Marking	Black	-10 °C	80 °C	SPST-NC	Plunger for Cap	Audible Click
TE Connectivity AMP Connectors MSPM101CS	50000 Cycles	Standard	Panel Mount Rear	Solder Turret	0.25 in	Off-Mom	50 VDC	100 mA	No Marking	Red	-10 °C	80 °C	SPST-NO	Plunger for Cap	Audible Click
