174-050 Series
Manufacturer: NorComp Inc.
Beta
⌘K

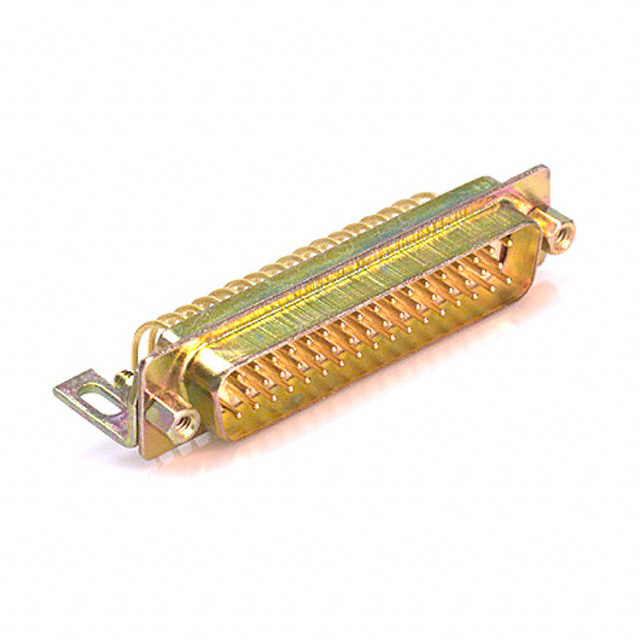

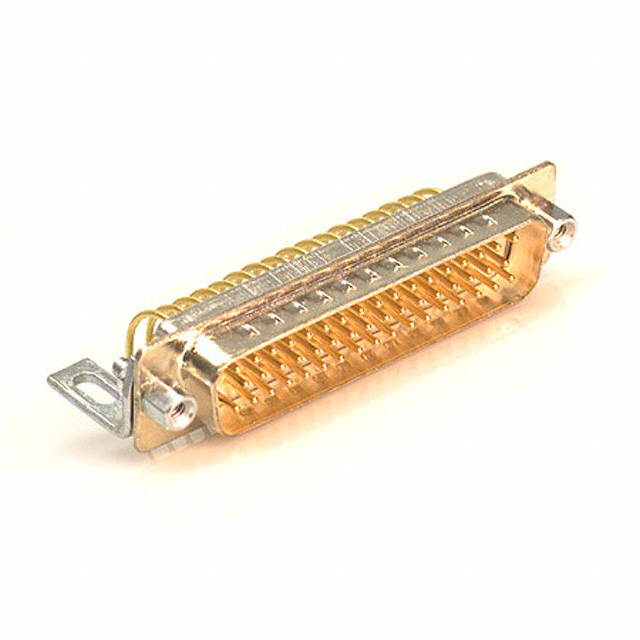

CONN D-SUB PLUG 50POS R/A SLDR
| Part | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Material Flammability Rating | Connector Type | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Contact Finish | Number of Positions | Number of Rows [custom] | Current Rating (Amps) | Connector Style | Features | Backset Spacing | Backset Spacing | Flange Feature | Termination | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | UL94 V-0 | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 | D DD | Signal | Gold | 50 | 3 | 5 A | D-Sub | Grounding Indents Mounting Brackets | 9.4 mm | 0.37 in | 4-40 Mating Side Female Screwlock | Solder | |||
 NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | UL94 V-0 | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 | D DD | Signal | Gold | 50 | 3 | 5 A | D-Sub | Mounting Brackets | 9.4 mm | 0.37 in | 4-40 Mating Side Female Screwlock | Solder | Steel | Yellow Chromate Plated | |

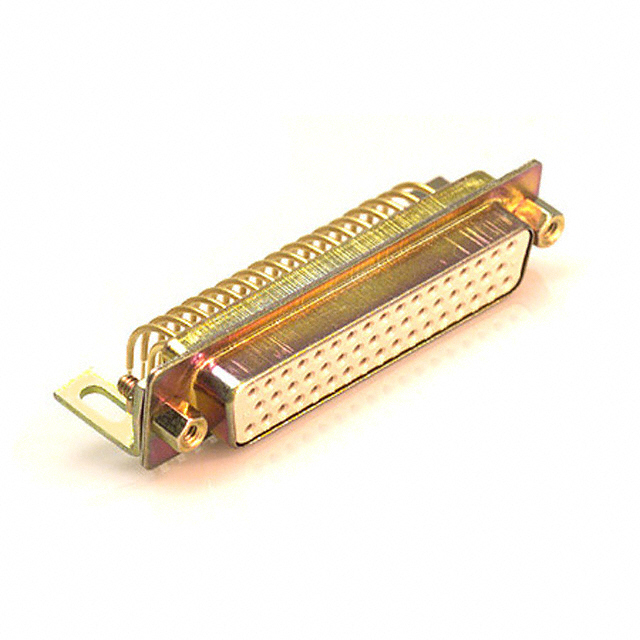

 NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | 5 | D DD | Signal | Gold | 50 | 3 | 5 A | D-Sub | Mounting Brackets | 9.4 mm | 0.37 in | 4-40 Mating Side Female Screwlock | Solder | Steel | Yellow Chromate Plated | |
NorComp Inc. | Beige | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | Flash | UL94 V-0 | Plug Male Pins | Panel Mount Right Angle Through Hole | 5 | D DD | Signal | Gold | 50 | 3 | 5 A | D-Sub | Grounding Indents Mounting Brackets | 9.4 mm | 0.37 in | 4-40 Mating Side Female Screwlock | Solder | Brass |
