3111265 Series

Catalog

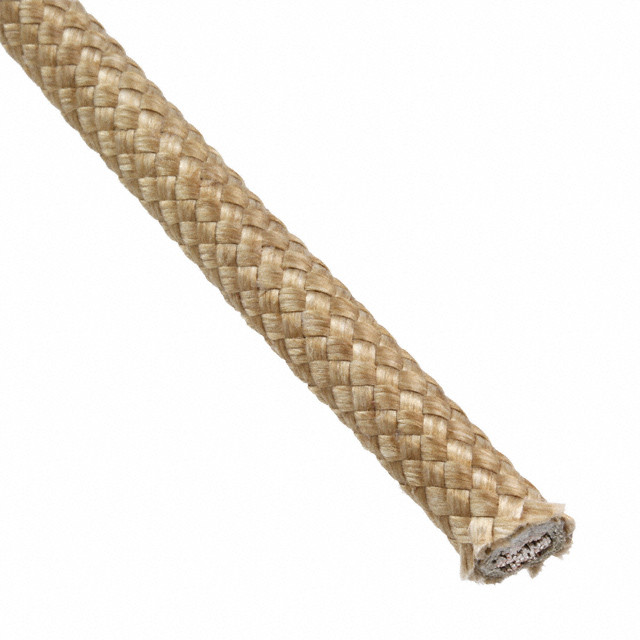

HOOK-UP STRND 12AWG TAN 100'

Part	Voltage	Conductor Material	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 3111265 TN005	600 V	Copper Nickel Coated	UL Style 5107	538 °C	-55 °C	30.5 m	100 ft	Tan	30 AWG	65	Hook-Up	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.007 in	0.18 mm	12 AWG	0.157 in	3.99 mm
ALPHA WIRE 3111265 TN001	600 V	Copper Nickel Coated	UL Style 5107	538 °C	-55 °C			Tan	30 AWG	65	Hook-Up	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.007 in	0.18 mm	12 AWG	0.157 in	3.99 mm	1000 ft	304.8 m
ALPHA WIRE 3111265 TN002	600 V	Copper Nickel Coated	UL Style 5107	538 °C	-55 °C	152.4 m	500 '	Tan	30 AWG	65	Hook-Up	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.007 in	0.18 mm	12 AWG	0.157 in	3.99 mm
