FISD144 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Jacket Color | Style | Ratings | Jacket (Insulation) Material | Cladding Diameter [diameter] | Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Core Diameter [diameter] | Tensile Strength | Features | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

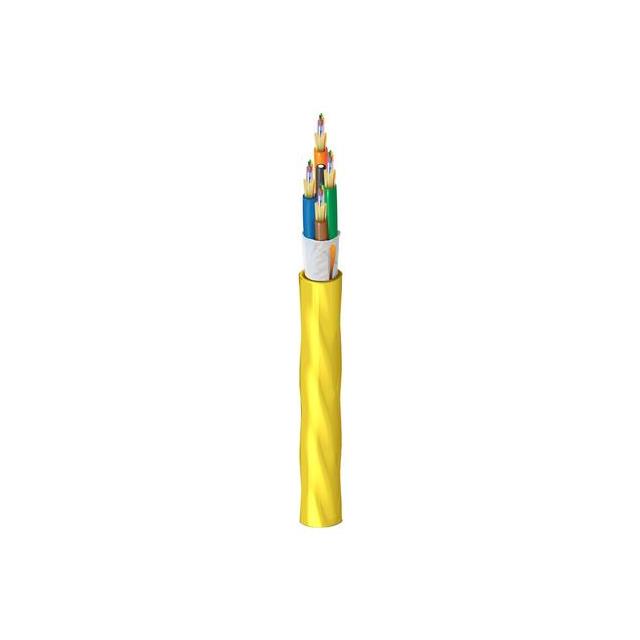

 Belden Inc. | -20 ░C | 70 °C | 144 Fibers Rip Cord | Yellow | Multiple Fibers | OFNR | Poly-Vinyl Chloride (PVC) | 125 µm | Singlemode | 1.076 in | 27.33 mm | 9 µm | 40.8 kg | ||

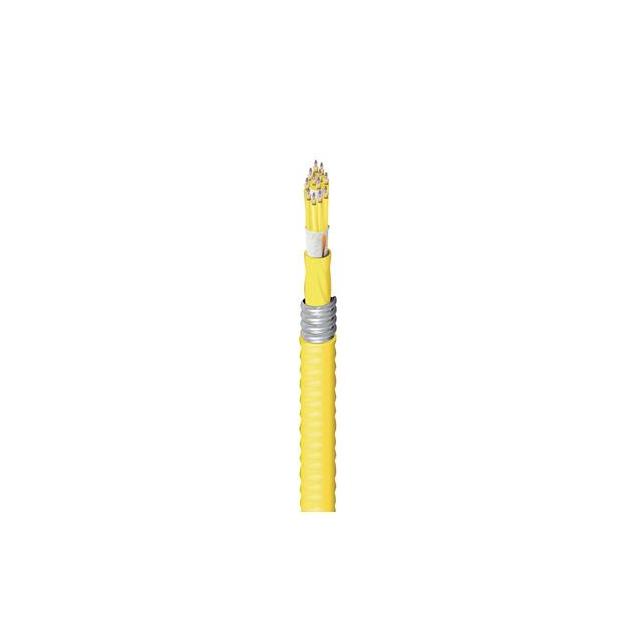

 Belden Inc. | 0 °C | 70 °C | Armored | Yellow | Multiple Fibers | OFCP | Poly-Vinyl Chloride (PVC) | 125 µm | Singlemode | 36.2 mm | 9 µm | 40.8 kg | 144 Fibers | 1.425 in |
