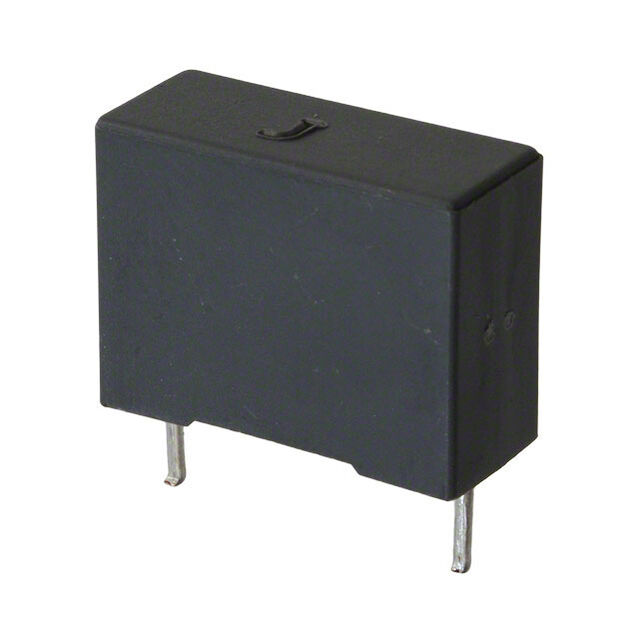

R75RF Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 3300PF 5% 1.25KVDC RAD
| Part | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Package / Case | ESR (Equivalent Series Resistance) | Capacitance | Mounting Type | Termination | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Dielectric Material | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Voltage Rating - DC | Voltage Rating - AC | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 5 % | 0.358 in | 9.1 mm | Radial | 241.1 mOhms | 0.0033 µF | Through Hole | PC Pins | 13 mm | 4 mm | 0.512 " | 0.157 " | Automotive High Frequency Switching High Pulse DV/DT | Polypropylene (PP) Metallized | 0.394 in | 10 mm | -55 C | 105 ░C | 1250 V | 1.25 kV | 450 V | AEC-Q200 |
