1734530 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

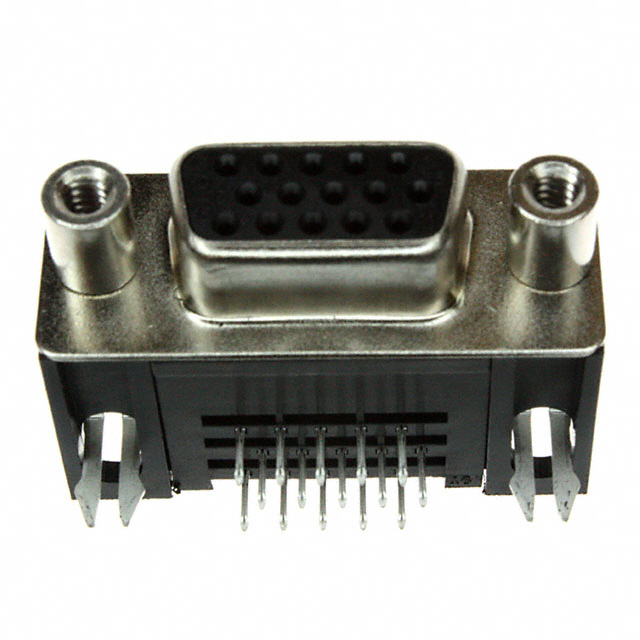

CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Flange Feature | Shell Material, Finish | Termination | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Finish | Mounting Type | Connector Style | Current Rating (Amps) | Number of Rows [custom] | Connector Type | Features | Contact Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 30 Áin | 0.76 Ám | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | ||
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | Housing/Shell | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 30 Áin | 0.76 Ám | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | 4-40 | |
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 15 µin | 0.38 µm | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | ||
TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | Housing/Shell | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 30 Áin | 0.76 Ám | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Signal | 4-40 | ||
TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | Housing/Shell | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | 4-40 | Flash | ||
TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 15 µin | 0.38 µm | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | ||
TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | Housing/Shell | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | 15 µin | 0.38 µm | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | 4-40 | |
TE Connectivity AMP Connectors | Black | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | 125 VDC | Housing/Shell | Nickel Plated Steel | Solder | 8.89 mm | 0.35 in | UL94 V-0 | (DE E) High Density | 1 | 15 | Gold | Right Angle Through Hole | D-Sub High Density | 2 A | 3 | Receptacle Female Sockets | Board Lock | Signal | 4-40 | Flash |
