LBA126 Series

Catalog

RELAY SPST-NO/NC 150MA 0-250V

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Package / Case	Package / Case	Voltage - Load [Max]	Circuit	On-State Resistance (Max) [Max]	Mounting Type	Approval Agency	Load Current	Voltage - Input	Termination Style

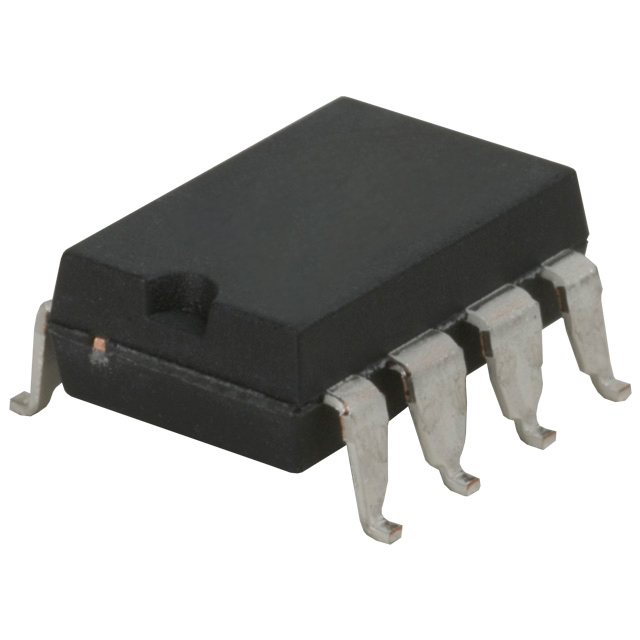

IXYS Integrated Circuits Division LBA126LS	8-SMD	85 °C	-40 °C	AC DC	7.62 mm	0.3 in	8-SMD	250 V	SPST-NC SPST-NO	20 Ohm	Surface Mount	CSA EN TUV UL	150 mA	1.2 VDC	Gull Wing
IXYS Integrated Circuits Division LBA126P	8-FlatPack	85 °C	-40 °C	AC DC	7.62 mm	0.3 in	8-SMD	250 V	SPST-NC SPST-NO	15 Ohm	Surface Mount	CSA EN TUV UL	170 mA	1.2 VDC	Gull Wing
IXYS Integrated Circuits Division LBA126STR	8-SMD	85 °C	-40 °C	AC DC	7.62 mm	0.3 in	8-SMD	250 V	SPST-NC SPST-NO	15 Ohm	Surface Mount	CSA EN TUV UL	170 mA	1.2 VDC	Gull Wing
