ED505 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

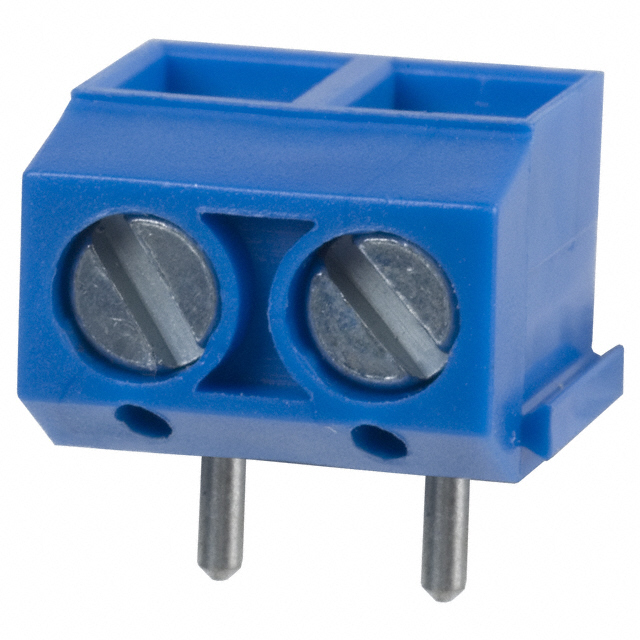

TERM BLK 2POS TOP ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Torque - Screw | Torque - Screw | Screw Thread | Clamp Material - Plating [custom] | Mounting Type | Current | Mating Orientation | Number of Levels | Voltage | Wire Gauge [Min] | Wire Gauge [Max] | Features | Pitch | Pitch | Wire Termination | Color | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Brass | Polyamide (PA) Nylon | 3.5 Lb-In | 0.4 Nm | M2.6 | Stainless Steel | Through Hole | 15 A | Vertical with Board | 1 | 300 VDC | 14 AWG | 22 AWG | Interlocking (Side) | 0.197 in | 5 mm | Screw - Leaf Spring Wire Guard | Blue | 2 |
