087715 Series

Manufacturer: Molex

Catalog

CONN PCI EXP FMALE 36POS 0.039

Part	Card Type	Color	Pitch [x]	Pitch [x]	Material - Insulation	Mounting Type	Contact Material	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Type	Contact Finish	Number of Rows	Number of Positions	Read Out	Gender	Features	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]

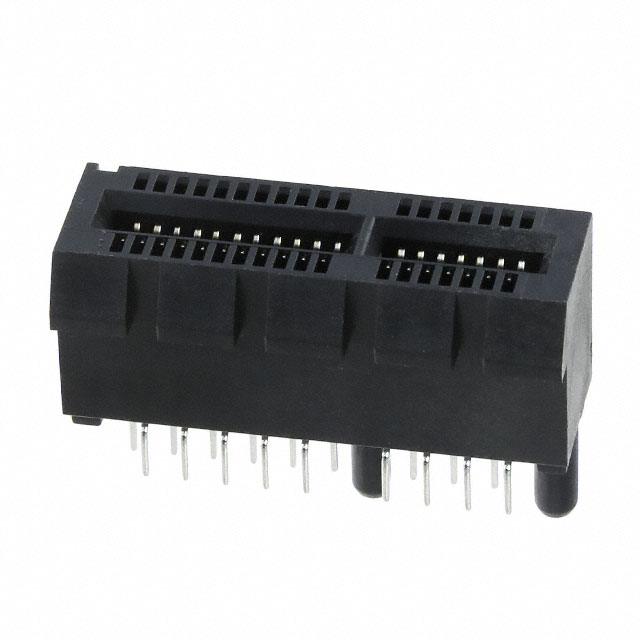

Molex 0877159001	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm	10 Áin	0.25 Ám	Solder Staggered	Cantilever	Gold	2	36	Dual	Female	Board Guide Locking Ramp

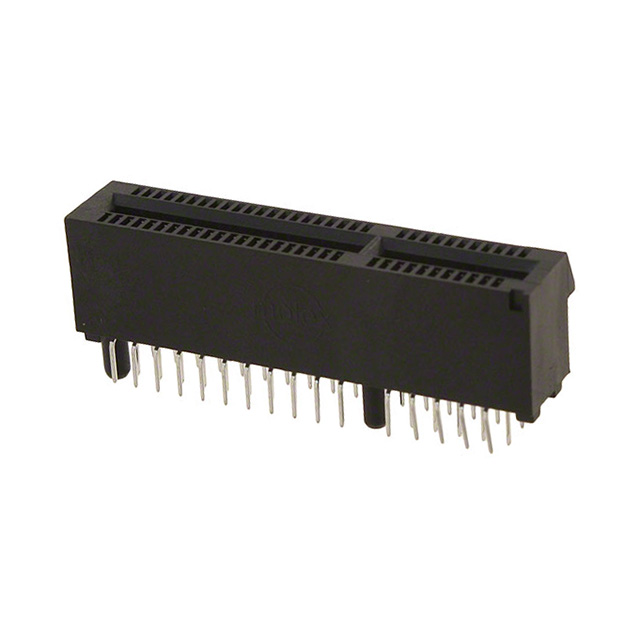

Molex 0877159107	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm			Solder Staggered	Cantilever	Gold	2	64	Dual	Female	Board Guide Locking Ramp	Flash
Molex 0877159000	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm			Solder Staggered	Cantilever	Gold	2	36	Dual	Female	Board Guide Locking Ramp	Flash
Molex 0877159920	PCI Express™	Black	0.039 in	1 mm	Nylon 4/6 Polyamide (PA46)	Through Hole	Phosphor Bronze	0.062 in	1.57 mm	30 Áin	0.76 Ám	Solder Staggered		Gold	2		Dual	Female	Board Guide Standoffs		85 °C	-55 °C	15 85
Molex 0877159913	PCI Express™	Black	0.039 in	1 mm	Thermoplastic	Through Hole	Copper Alloy	0.062 in	1.57 mm	30 Áin	0.76 Ám	Solder Staggered	Cantilever	Gold	2	164	Dual	Female	Board Lock Locking Ramp
Molex 0877159912	PCI Express™	Black	0.039 in	1 mm	Thermoplastic	Through Hole	Copper Alloy	0.062 in	1.57 mm	30 Áin	0.76 Ám	Solder Staggered	Cantilever	Gold	2	164	Dual	Female	Board Lock Locking Ramp
Molex 0877159003	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm			Solder Staggered	Cantilever	Gold	2	36	Dual	Female	Board Guide Locking Ramp	Flash
Molex 0877159200	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm			Solder Staggered	Cantilever	Gold	2	98	Dual	Female	Board Guide Locking Ramp	Flash
Molex 0877159007	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm			Solder Staggered	Cantilever	Gold	2	36	Dual	Female	Board Guide Locking Ramp	Flash
Molex 0877153908	PCI Express™	Black	0.039 in	1 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Through Hole	Phosphor Bronze	0.062 in	1.57 mm	15 µin	0.38 µm	Solder Staggered	Cantilever	Gold	2	230	Dual	Female	Board Guide					104	11
