1478403 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

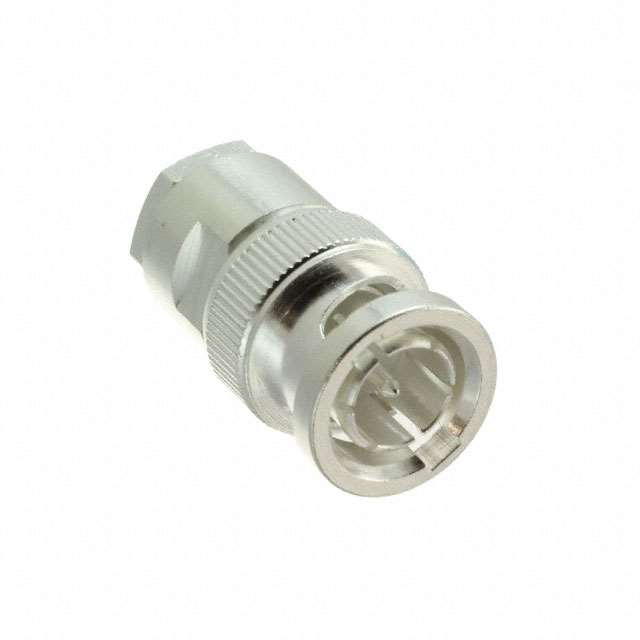

RF BNC CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, SOLDER TERMINAL, PLUG
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Dielectric Material | Connector Type | Contact Termination | Cable Group | Connector Style | Center Contact Plating | Fastening Type | Voltage Rating | Number of Ports | Includes | Impedance | Frequency - Max [Max] | Body Material | Housing Color | Mating Cycles | Center Contact Material | Shield Termination | Mounting Type | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -65 ░C | 165 °C | 0.2 dB | Polytetrafluoroethylene (PTFE) | Male Pin Plug | Solder | 187A RG-179B URM111 | BNC | Silver | Bayonet Lock | 500 V | 1 | 1 Clamp 1 Connector 1 Contact | 75 Ohms | 2 GHz | Brass | Silver | 500 | Brass | Clamp | Free Hanging (In-Line) | Silver |
