LDD-1000 Series

Catalog

LED DRIVER CC BUCK 2-52V 1A

Part	Mounting Type	Current - Output (Max) [Max]	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Min) [Min]	Ratings	Efficiency	Dimming	Topology	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case
MEAN WELL USA Inc. LDD-1000HW	Chassis Mount	1 A	OTP Remote On/Off SCP	Constant Current	85 °C	-40 C	Wire Leads	56 V	1	CE	52 V	2 V	9 V	IP67	97 %	PWM	Buck	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. LDD-1000LW	Chassis Mount	1 A	OTP Remote On/Off SCP	Constant Current	85 °C	-40 C	Wire Leads	36 V	1	CE	30 VDC	2 V	6 V	IP67	95 %	PWM	Buck	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm

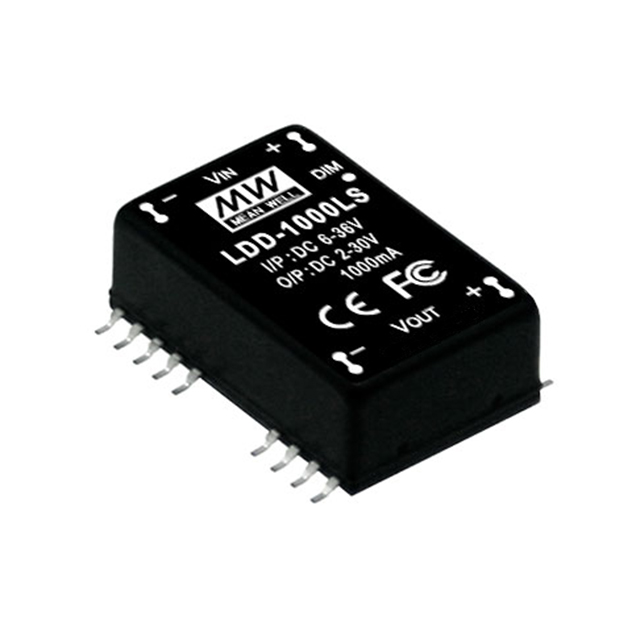

MEAN WELL USA Inc. LDD-1000LS	Surface Mount	1 A	Remote On/Off SCP	Constant Current	71 °C	-40 C		36 V	1	CE	30 VDC	2 V	6 V		95 %	Analog PWM	Buck	0.8 "	1.25 in		0.45 in	31.8 mm		20.3 mm	11.4 mm	24-SMD Module 18 Leads
