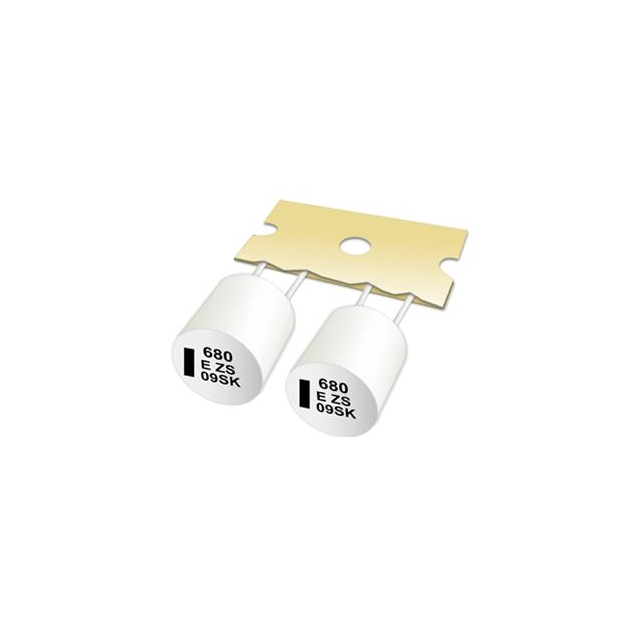

EEH-AZS Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY HYB 120UF 63V T/H

Part	Type	Ripple Current @ Low Frequency	Voltage - Rated	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Tolerance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Capacitance	Mounting Type	Applications	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEH-AZSJ121UB	Hybrid	600 mA	63 V	5 mm	0.197 in	3 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	120 µF	Through Hole	Automotive	19 mOhm	12.7 mm	0.5 in
Panasonic Industrial Automation Sales EEH-AZSE102UB	Hybrid	800 mA	25 VDC	5 mm	0.197 in	4 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	1000 µF	Through Hole	Automotive	11 mOhm			16.7 mm	0.657 in
Panasonic Industrial Automation Sales EEH-AZSJ181UB	Hybrid	700 mA	63 V	5 mm	0.197 in	3.5 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	180 çF	Through Hole	Automotive	15 mOhm			16.7 mm	0.657 in
Panasonic Industrial Automation Sales EEH-AZSV471UB	Hybrid	700 mA	35 V	5 mm	0.197 in	3.5 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	470 µF	Through Hole	Automotive	14 mOhms	12.7 mm	0.5 in
Panasonic Industrial Automation Sales EEH-AZSE681UB	Hybrid	700 mA	25 VDC	5 mm	0.197 in	3.5 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	680 µF	Through Hole	Automotive	14 mOhms	12.7 mm	0.5 in
Panasonic Industrial Automation Sales EEH-AZSH271UB	Hybrid	740 mA	50 VDC	5 mm	0.197 in	3.7 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	270 µF	Through Hole	Automotive	13 mOhms			16.7 mm	0.657 in
Panasonic Industrial Automation Sales EEH-AZSH181UB	Hybrid	640 mA	50 VDC	5 mm	0.197 in	3.2 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	180 çF	Through Hole	Automotive	17 mOhm	12.7 mm	0.5 in
Panasonic Industrial Automation Sales EEH-AZSV681UB	Hybrid	800 mA	35 V	5 mm	0.197 in	4 A	10 mm	0.394 in	Radial Can	20 %	AEC-Q200	-55 °C	125 °C	4000 Hrs	680 µF	Through Hole	Automotive	11 mOhm			16.7 mm	0.657 in
