320862 Series

Catalog

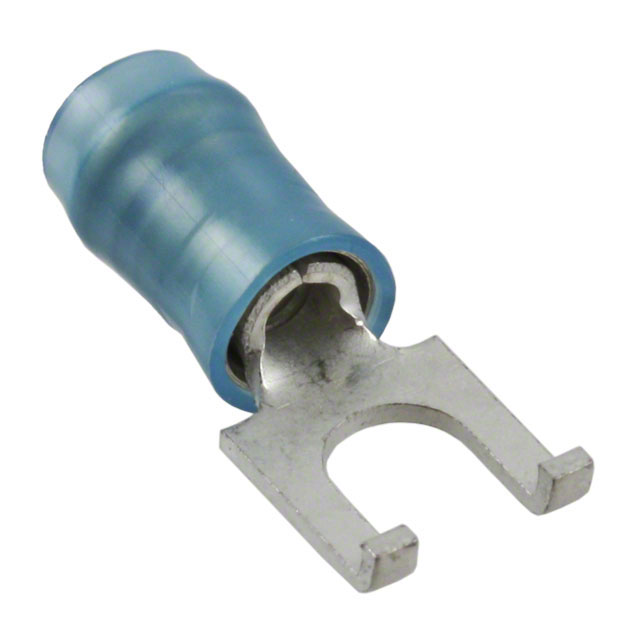

CONN SPADE TERM 14-16AWG #8 BLU

Part	Length - Termination	Length - Termination	Features	Contact Material	Termination	Insulation	Contact Finish	Material - Insulation	Width - Outer Edges	Width - Outer Edges [custom]	Stud/Tab Size	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Color
TE Connectivity Raychem Cable Protection 8-320862-1	0.404 "	10.26 mm	Serrated Termination	Copper	Crimp	Insulated	Tin	Nylon Polyamide (PA)	7.47 mm	0.294 in	8 Stud	Free Hanging (In-Line)	0.171 in	4.34 mm	19.51 mm	0.768 "	Flanged	0.203 in	5.16 mm	0.115 in 2.92 mm	0.17 " 4.32 mm	Blue
TE Connectivity Raychem Cable Protection 2-320862-1	0.404 "	10.26 mm	Serrated Termination	Copper	Crimp	Insulated	Tin	Nylon Polyamide (PA)	7.47 mm	0.294 in	8 Stud	Free Hanging (In-Line)	0.171 in	4.34 mm	19.51 mm	0.768 "	Flanged	0.203 in	5.16 mm	0.115 in 2.92 mm	0.17 " 4.32 mm	Blue
