76401TS Series
Manufacturer: Belden Inc.
Beta
⌘K

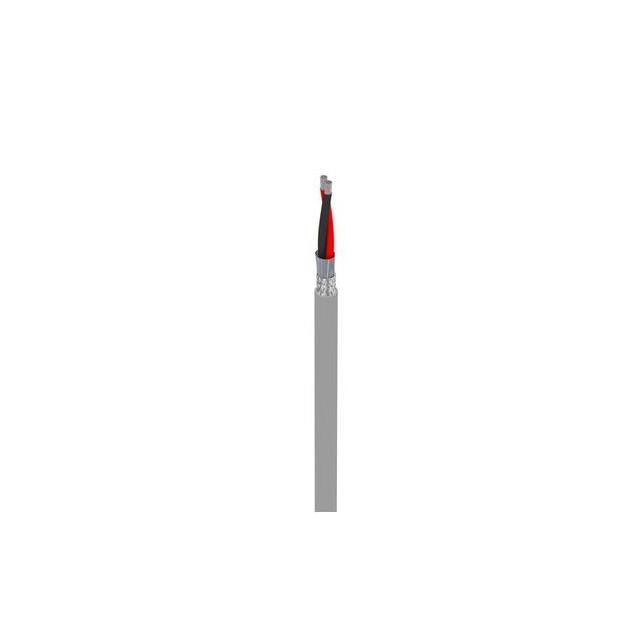

CABLE 2COND 28AWG GRAY SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Ratings | Conductor Material | Voltage | Features | Conductor Insulation | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Multi-Conductor | 100 ft | 30.5 m | Braid Foil | 1.016 mm | 0.04 in | 7 | 36 AWG | 0.186 " | 4.72 mm | 28 AWG | Poly-Vinyl Chloride (PVC) | Gray | UL Style 20006 | Copper Tinned | 300 VDC | Drain Wire Oil Resistant | Poly-Vinyl Chloride (PVC) | 2 |
