315-012 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Read Out	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Number of Positions/Bay/Row	Color	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Gender	Flange Feature	Contact Finish	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Features

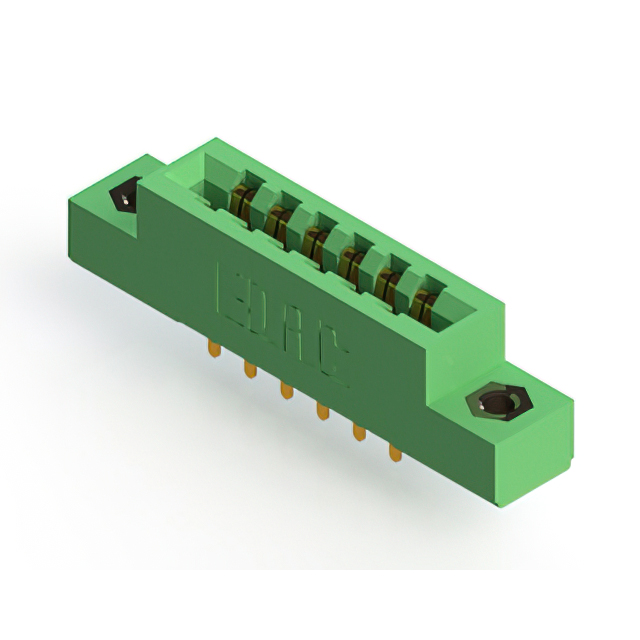

EDAC Inc. 315-012-521-207	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount M3 Threaded Insert Top Opening	Gold	Panel Mount Through Hole	Semi Bellows

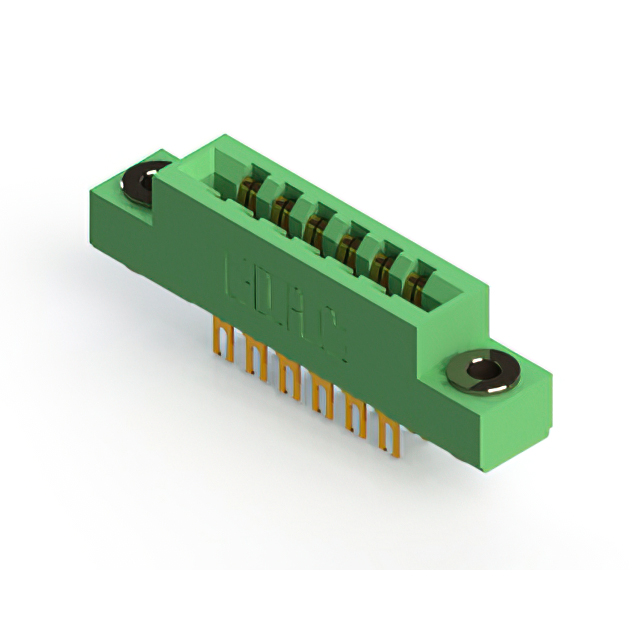

EDAC Inc. 315-012-500-203	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder Eyelet(s)	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Floating Bobbin Flush Mount	Gold	Panel Mount	Semi Bellows	0.116 "	2.95 mm
EDAC Inc. 315-012-520-278	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Panel Mount Through Hole	Semi Bellows

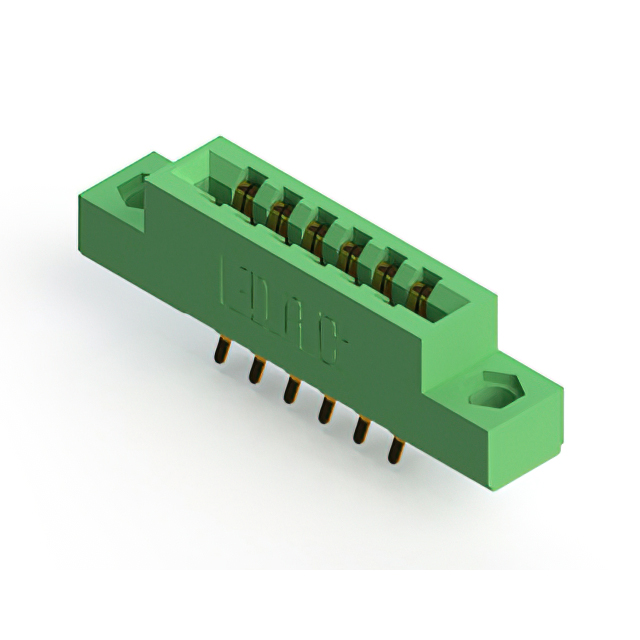

EDAC Inc. 315-012-556-204	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	Gold	Board Edge Straddle Mount	Semi Bellows	0.156 "	3.96 mm	Card Extender

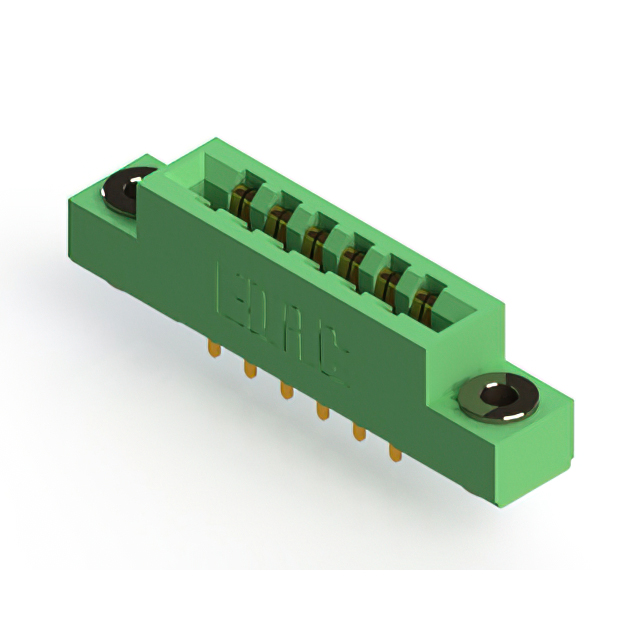

EDAC Inc. 315-012-521-203	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Floating Bobbin Flush Mount	Gold	Panel Mount Through Hole	Semi Bellows	0.116 "	2.95 mm
EDAC Inc. 315-012-556-258	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Board Edge Straddle Mount	Semi Bellows			Card Extender Card Guides
EDAC Inc. 315-012-500-278	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder Eyelet(s)	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Panel Mount	Semi Bellows
EDAC Inc. 315-012-521-268	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Panel Mount Through Hole	Semi Bellows
EDAC Inc. 315-012-556-268	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Board Edge Straddle Mount	Semi Bellows			Card Extender Card Guides
EDAC Inc. 315-012-520-258	Polyester Thermoplastic	2	3.96 mm	0.156 in	Dual	2	-40 C	105 ░C	0.25 Ám	10 Áin	Solder	12	6	Green	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Gold	Panel Mount Through Hole	Semi Bellows
