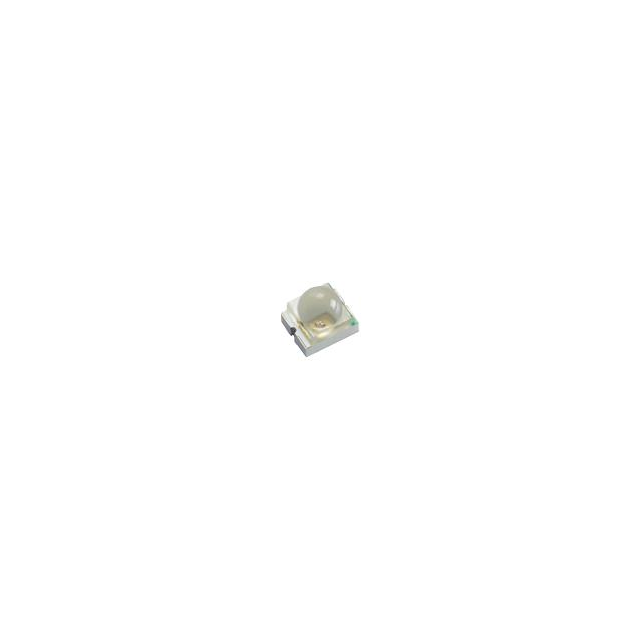

APED3528 Series

Catalog

LED UNI-COLOR GREEN 515NM 2-PIN CHIP LED T/R

Part	Lens Transparency	Wavelength - Peak	Lens Size [diameter]	Viewing Angle	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Mounting Type	Configuration	Package / Case	Package / Case	Lens Style	Millicandela Rating	Current - Test	Wavelength - Dominant	Color	Height (Max) [Max] [z]
Kingbright APED3528ZGC-F01	Clear	515 nm	2.6 mm Dia	40 °	Chip LED	3.3 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	1600 mcd	20 mA	525 nm	Green	3.2 mm
Kingbright APED3528QBC/D-F01	Clear	460 nm	2.6 mm Dia	40 °	Chip LED	3.3 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	400 mcd	20 mA	465 nm	Blue	3.2 mm
Kingbright APED3528VBC/D	Clear	465 nm	2.6 mm Dia	40 °	Chip LED	3.3 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	550 mcd	20 mA	470 nm	Blue	3.2 mm
Kingbright APED3528SEC/J3	Clear	640 nm	2.6 mm Dia	40 °	Chip LED	2.2 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	2000 mcd	20 mA	625 nm	Red	3.2 mm
Kingbright APED3528CGCK-F01	Clear		2.6 mm Dia	40 °	SMD	2.1 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	200 mcd	20 mA	570 nm	Green	3.2 mm
Kingbright APED3528SURCK-F01	Clear	645 nm	2.6 mm Dia	40 °	Chip LED	1.95 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	250 mcd	20 mA	630 nm	Red	3.2 mm
Kingbright APED3528SYCK-F01	Clear	590 nm	2.6 mm Dia	40 °	Chip LED	2 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	500 mcd	20 mA	590 nm	Yellow	3.2 mm
Kingbright APED3528SYC	Clear	590 nm	2.6 mm Dia	40 °	2-SMD	2 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard		2-SMD No Lead	Round with Domed Top	250 mcd	20 mA	588 nm	Yellow	3.4 mm
Kingbright APED3528VGC/E	Clear	518 nm	2.6 mm Dia	40 °	1411	4 V	3.5 mm	2.8 mm	Colorless	Surface Mount		3528 Metric	1411	Round with Domed Top	400 mcd	20 mA	525 nm	Green	3.4 mm
Kingbright APED3528SEC/J4	Clear	611 nm	2.6 mm Dia	40 °	Chip LED	2.2 V	3.5 mm	2.8 mm	Colorless	Surface Mount	Standard	3528 Metric	1411	Round with Domed Top	1800 mcd	20 mA	605 nm		3.2 mm
