NRPC002 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

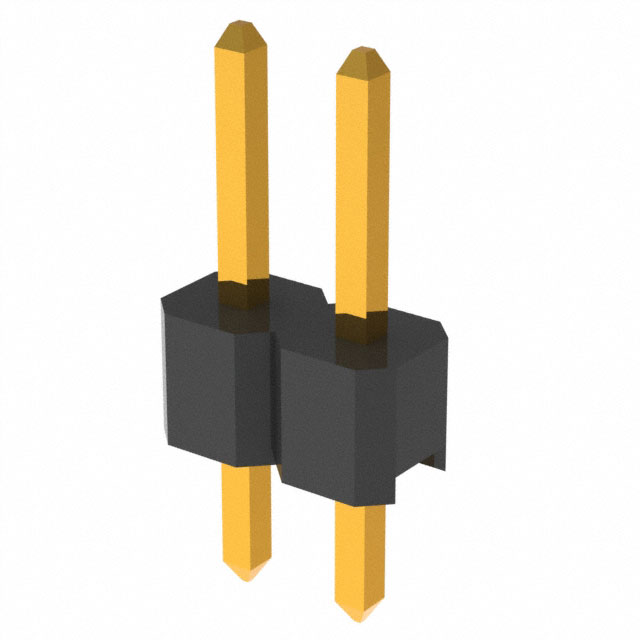

CONN HEADER VERT 2POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish - Post | Connector Type | Contact Material | Contact Finish - Mating | Style | Material Flammability Rating | Fastening Type | Termination | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Length - Post | Contact Length - Post | Shrouding | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Mounting Type | Insulation Material | Current Rating (Amps) | Number of Rows | Number of Positions Loaded | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Gold | Header Breakaway | Brass | Gold | Board to Board Cable | UL94 V-0 | Push-Pull | Solder | Square | 0.448 in | 11.39 mm | Male Pin | -40 C | 105 ░C | 2 | 3.05 mm | 0.12 in | Unshrouded | 0.23 in | 5.84 mm | Black | Flash | 0.098 " | 2.5 mm | Through Hole | Nylon 6T Polyamide (PA6T) | 3 A | 1 | All | 0.1 " | 2.54 mm |
