152301 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

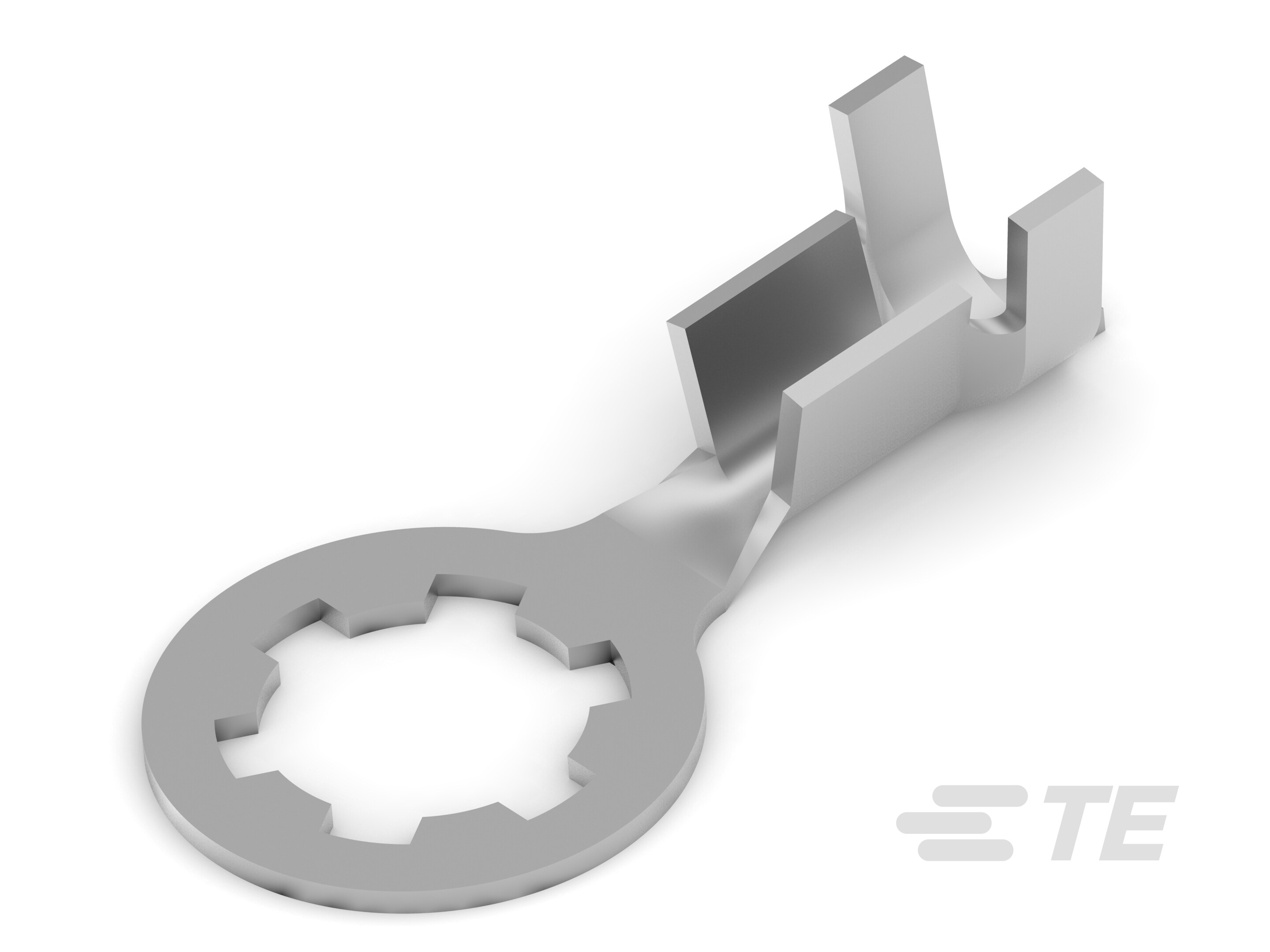

RING TONGUE 5.2MM DIA 20-15 TPST
| Part | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Contact Finish | Thickness [custom] | Thickness [custom] | Termination | Mounting Type | Terminal Type | Features | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 8.89 mm | 0.35 in | Steel | 16 AWG | 20 AWG | Non-Insulated | Tin | 0.46 mm | 0.018 in | Crimp | Free Hanging (In-Line) | Stud Retaining | Inner Teeth | 0.13 in | 0.11 in | 2.79 mm | 3.3 mm |
