FD4D036 Series
Manufacturer: Belden Inc.
Beta
⌘K

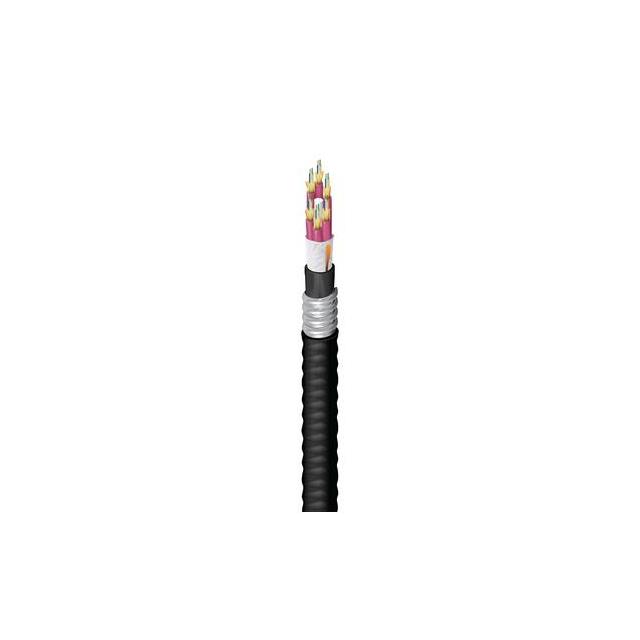

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Style | Type | Cladding Diameter [diameter] | Tensile Strength | Jacket (Insulation) Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Core Diameter [diameter] | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | Multiple Fibers | Multimode | 125 µm | 81.6 kg | Poly-Vinyl Chloride (PVC) | 36 Fibers Rip Cord | 0.634 in | 16.1 mm | Black | 50 µm | OFNR | |
Belden Inc. | 70 °C | -40 C | Multiple Fibers | Multimode | 125 µm | 81.6 kg | Poly-Vinyl Chloride (PVC) | Armored | 1.03 in | 26.16 mm | Black | 50 µm | OFCR | 36 Cells |
 Belden Inc. | 70 °C | -40 C | Multiple Fibers | Multimode | 125 µm | 81.6 kg | Poly-Vinyl Chloride (PVC) | Armored | 0.986 in | 25.04 mm | Black | 50 µm | OFCP | 36 Cells |
