R12525 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

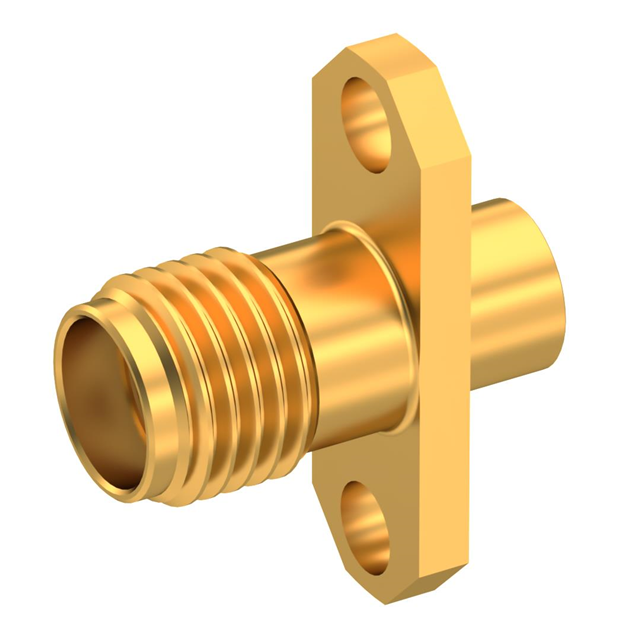

SMA / STRAIGHT 2 HOLE FLANGE JAC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Voltage Rating | Mounting Type | Contact Termination | Center Contact Material | Number of Ports | Cable Group | Mounting Feature | Housing Color | Connector Type | Fastening Type | Shield Termination | Frequency - Max [Max] | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 105 ░C | -65 ░C | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | 250 V | Panel Mount | Solder | Beryllium Copper | 1 | RG-405 (.085" Semi Rigid) | Flange | Gold | Female Socket Jack | Threaded | Solder | 18 GHz | 50 Ohms | SMA |
 Radiall USA, Inc. | 105 ░C | -65 ░C | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | 250 V | Panel Mount | Solder | Beryllium Copper | 1 | RG-405 (.085" Semi Rigid) | Flange | Gold | Female Socket Jack | Threaded | Solder | 18 GHz | 50 Ohms | SMA |
