GHCS8PM Series

Catalog

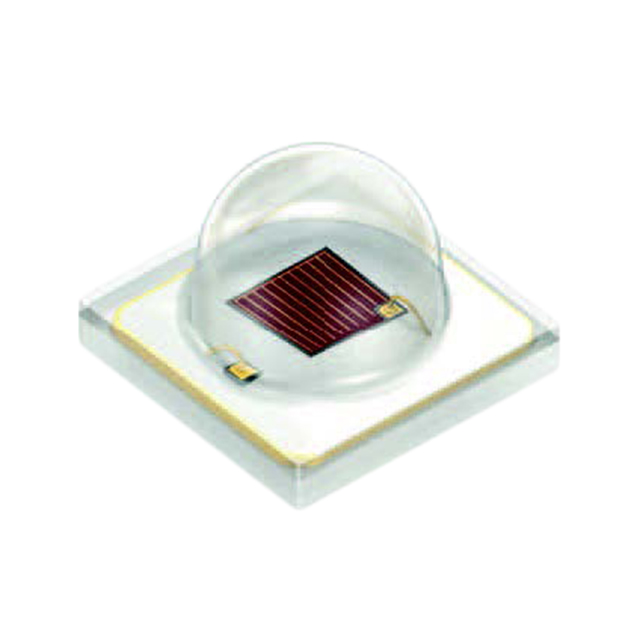

LED OSLON SSL80 RED 656NM SMD

Part	Color	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Temperature - Test	Viewing Angle	Supplier Device Package	Mounting Type	Current - Test	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Thermal Resistance of Package	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max]
ams-OSRAM USA INC. GH CS8PM1.24-4T2U-1-0-350-R33	Red	1 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	2.07 V	400 mW	530 mW	560 mW	25 °C	80 °	SMD	Surface Mount	350 mA	656 nm	0.093 in	2.35 mm
ams-OSRAM USA INC. GH CS8PM1.24-3T1U-1-0-350-R18	Red	1 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	2.15 V				25 °C	80 °		Surface Mount	350 mA	656 nm	0.093 in	2.36 mm	5.3 °C/W	646 nm	666 nm
ams-OSRAM USA INC. GH CS8PM1.24-4T2U-1-0-350-R18	Red	1 A	3 mm	0.118 in	3 mm	0.118 "	3030 Metric	1212	2.15 V	400 mW	530 mW	560 mW	25 °C	80 °	SMD	Surface Mount	350 mA	656 nm		0.091 in	5.3 °C/W	646 nm	666 nm	2.31 mm
