M2019ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Circuit | Illumination | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Switch Function | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Bushing Thread | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

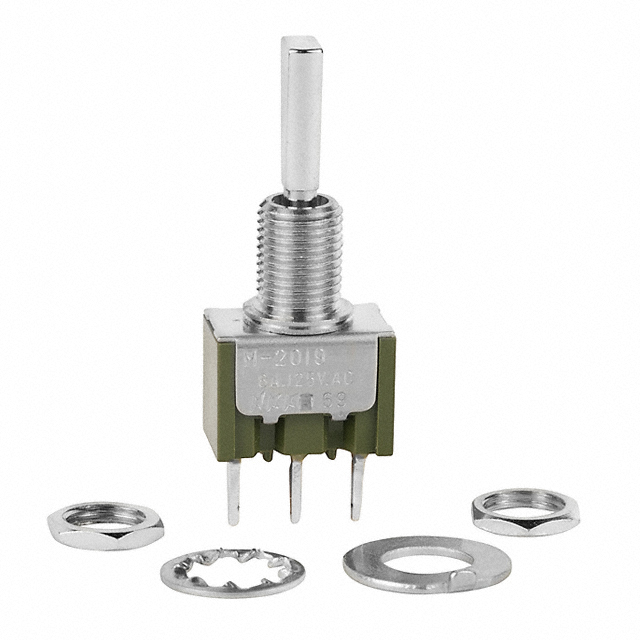

 NKK Switches | 25000 Steps | Brass Chrome Plated | SPDT | Non-Illuminated | Panel Mount | 85 °C | -30 ░C | Epoxy Sealed Terminals | 3 A 6 A | On-Off-Mom | Flatted | 125 V | 30 V | 11.4 mm | 6.5 mm | 1/4-40 | PC Pin |

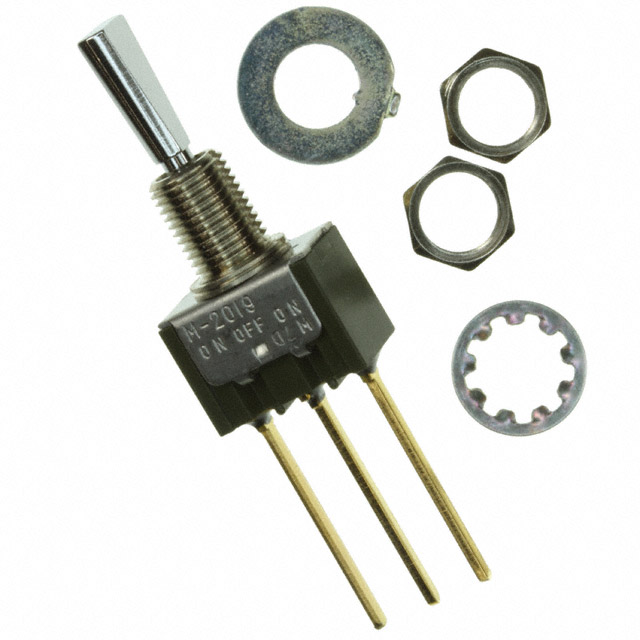

 NKK Switches | 50000 Cycles | Brass Chrome Plated | SPDT | Non-Illuminated | Panel Mount | 85 °C | -30 ░C | Epoxy Sealed Terminals | 0.4 VA | On-Off-Mom | Flatted | 28 V | 28 V | 11.4 mm | 6.5 mm | 1/4-40 | Wire Wrap |

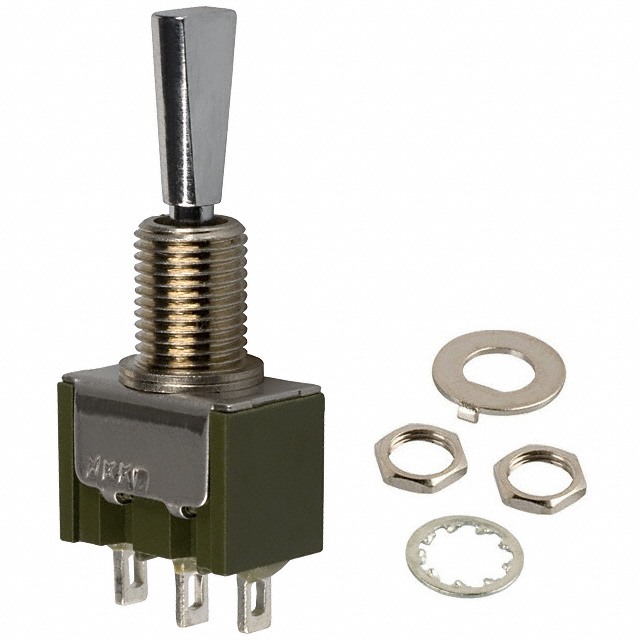

 NKK Switches | 25000 Steps | Brass Chrome Plated | SPDT | Non-Illuminated | Panel Mount | 85 °C | -30 ░C | Epoxy Sealed Terminals | 3 A 6 A | On-Off-Mom | Flatted | 125 V | 30 V | 11.4 mm | 6.5 mm | 1/4-40 | Solder Lug |
