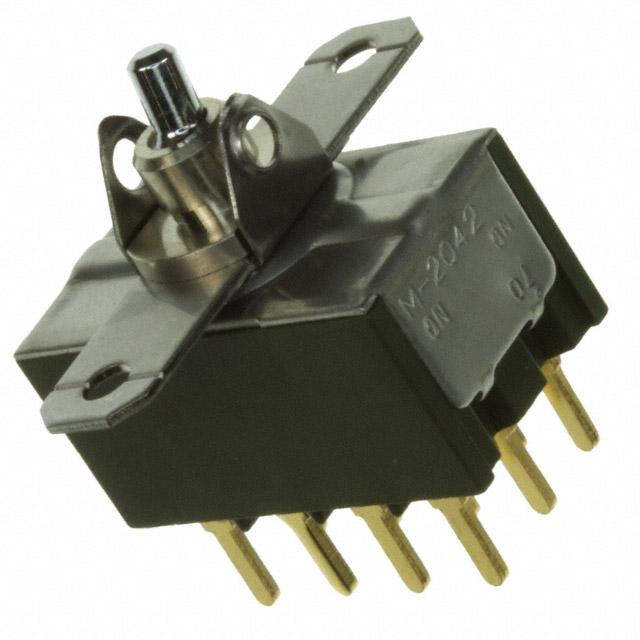

M2042TN Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER 4PDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Mounting Type | Features | Switch Function | Approval Agency | Voltage Rating - AC | Termination Style | Actuator Marking | Actuator Type | Circuit | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | Flange Panel Mount | Epoxy Sealed Terminals | On-On | CSA UL | 28 V | PC Pin | Varies by Cap | Actuator Arm Cap Required | 4PDT | 0.4 VA | 85 °C | -30 ░C | |||
 NKK Switches | 50000 Cycles | 25000 Steps | 30 V | Flange Panel Mount | Epoxy Sealed Terminals | On-On | CSA UL | 125 V | Solder Lug | No Marking | Paddle | 4PDT | 4 A 6 A | 85 °C | -30 ░C | 12.4 mm | 0.5 in | Black |
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | Flange Panel Mount | Epoxy Sealed Terminals | On-On | CSA UL | 125 V | Solder Lug | Varies by Cap | Actuator Arm Cap Required | 4PDT | 4 A 6 A | 85 °C | -30 ░C | |||
NKK Switches | 50000 Cycles | 25000 Steps | 30 V | Flange Panel Mount | Epoxy Sealed Terminals | On-On | CSA UL | 125 V | Solder Lug | No Marking | Concave | 4PDT | 4 A 6 A | 85 °C | -30 ░C | 10.1 mm | 17.8 mm | Red |
