842-104 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 104POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Features	Mounting Type	Card Type	Contact Type	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Pitch	Pitch	Color	Contact Material

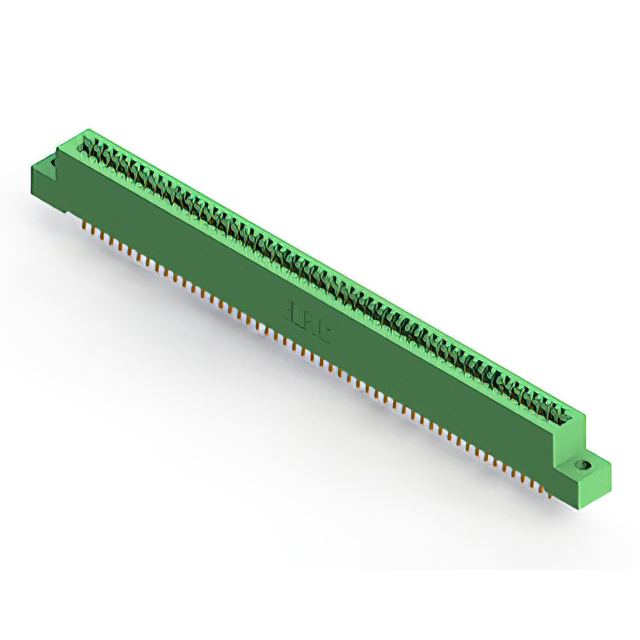

EDAC Inc. 842-104-556-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Card Extender	Board Edge Straddle Mount	Non Specified - Dual Edge	Cantilever	104	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Green	Copper Alloy

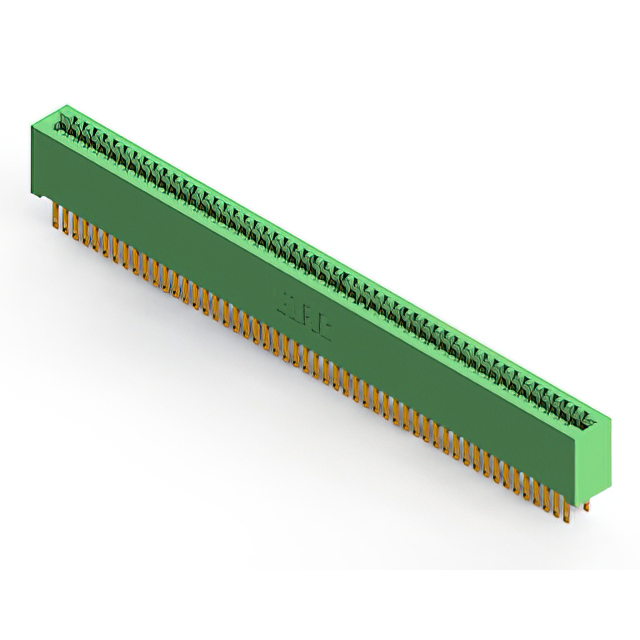

EDAC Inc. 842-104-500-201	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder Eyelet(s)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104				Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-560-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Card Extender	Board Edge Straddle Mount	Non Specified - Dual Edge	Cantilever	104	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Green	Copper Alloy

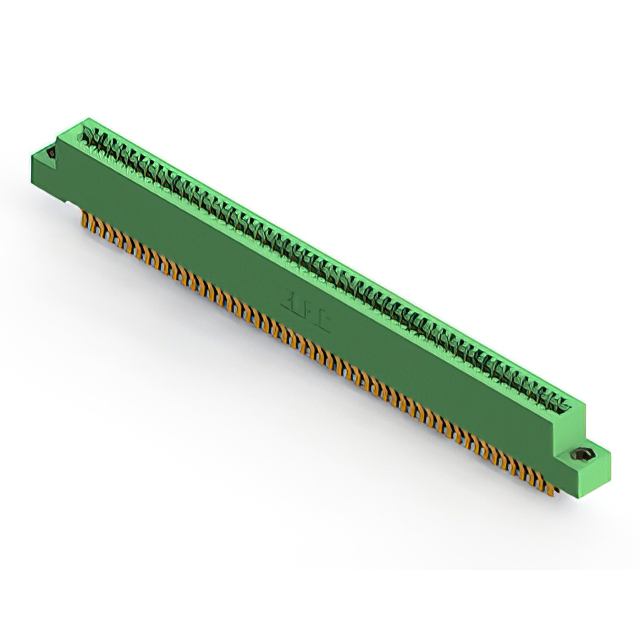

EDAC Inc. 842-104-560-208	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Card Extender	Board Edge Straddle Mount	Non Specified - Dual Edge	Cantilever	104	4-40 Flush Mount Threaded Insert Top Opening			Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-523-203	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-540-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Wire Wrap	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-541-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Wire Wrap	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-555-202	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Card Extender	Board Edge Straddle Mount	Non Specified - Dual Edge	Cantilever	104	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Female	0.1 "	2.54 mm	Green	Copper Alloy
EDAC Inc. 842-104-542-201	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Wire Wrap	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104				Female	0.1 "	2.54 mm	Green	Copper Alloy

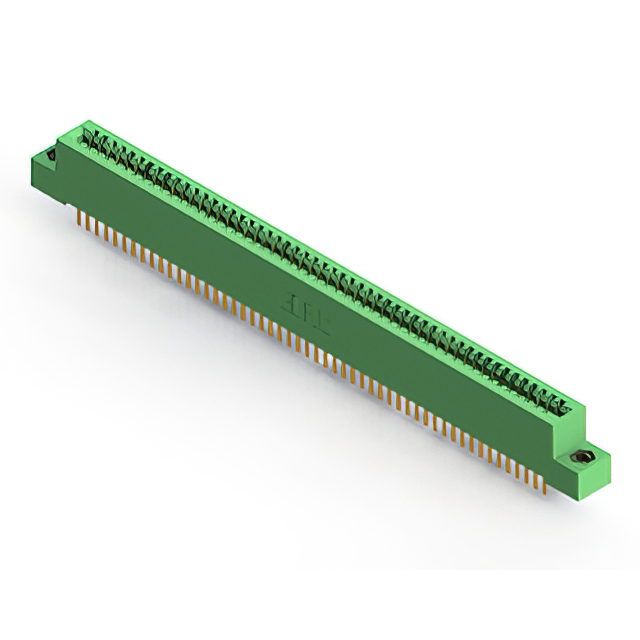

EDAC Inc. 842-104-520-208	2	Diallyl Phthalate (DAP)	125 °C	-40 C	Gold	52	0.25 Ám	10 Áin	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual		Through Hole	Non Specified - Dual Edge	Cantilever	104	4-40 Flush Mount Threaded Insert Top Opening			Female	0.1 "	2.54 mm	Green	Copper Alloy
