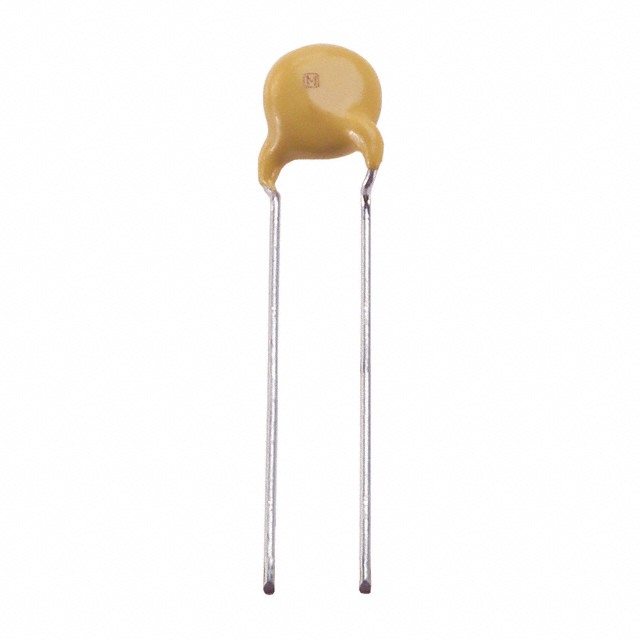

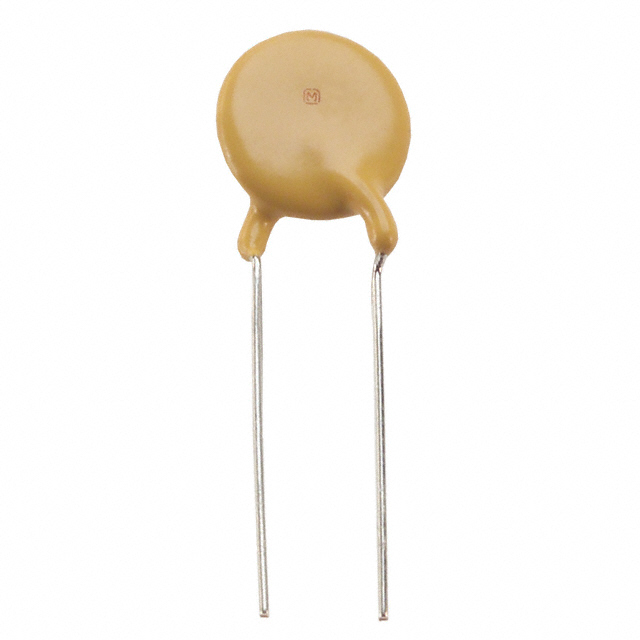

ECK-NVS Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 150PF 440VAC Y5P RADIAL

Part	Temperature Coefficient	Package / Case	Ratings	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Rated	Applications	Lead Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECK-NVS151KB	Y5P (B)	Disc Radial	X1 Y2	150 pF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	10 %	0.472 in	12 mm	440 VAC	Safety	Formed Leads	0.315 in	8 mm
Panasonic Electronic Components ECK-NVS221KB	Y5P (B)	Disc Radial	X1 Y2	220 pF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	10 %	0.472 in	12 mm	440 VAC	Safety	Formed Leads	0.315 in	8 mm
Panasonic Electronic Components ECK-NVS472ME	Y5U (E)	Disc Radial	X1 Y2	0.0047 µF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	20 %			440 VAC	Safety	Formed Leads	0.433 "	11 mm	15 mm	0.591 "
Panasonic Electronic Components ECK-NVS102ME	Y5U (E)	Disc Radial	X1 Y2	0.001 µF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	20 %	0.472 in	12 mm	440 VAC	Safety	Formed Leads	0.315 in	8 mm
Panasonic Electronic Components ECK-NVS222ME	Y5U (E)	Disc Radial	X1 Y2	2200 pF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	20 %			440 VAC	Safety	Formed Leads	0.354 in	9 mm	13 mm	0.512 "
Panasonic Electronic Components ECK-NVS103MF	Y5V (F)	Disc Radial	X1 Y2	10000 pF	-25 °C	125 °C	Through Hole	0.295 in	7.5 mm	20 %			440 VAC	Safety	Formed Leads			18 mm	0.709 in
Panasonic Electronic Components ECK-NVS102KB	Y5P (B)	Disc Radial	X1 Y2	0.001 µF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	10 %			440 VAC	Safety	Formed Leads	0.354 in	9 mm	13 mm	0.512 "
Panasonic Electronic Components ECK-NVS472MF	Y5V (F)	Disc Radial	X1 Y2	0.0047 µF	-25 °C	125 °C	Through Hole	0.197 "	5 mm	20 %	0.551 in		440 VAC	Safety	Formed Leads	0.394 in	10 mm			14 mm
