1470224 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 8POS 2.5MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Termination	Number of Positions	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Insulation Material	Contact Type	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Shrouding	Style	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material
TE Connectivity AMP Connectors 1470224-8	1.27 µm	50 µin	Automotive General Purpose Industrial Medical	Solder	8	1	250 V	-40 C	105 ░C	Header	50 µin	1.27 µm	Tin	All	Ivory	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	Square	Through Hole	5.9 mm	0.232 in	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	Locking Ramp	UL94 V-2	2.5 mm	0.098 in	Brass
TE Connectivity AMP Connectors 1470224-6	1.27 µm	50 µin	Automotive General Purpose Industrial Medical	Solder	6	1	250 V	-40 C	105 ░C	Header	50 µin	1.27 µm	Tin	All	Ivory	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	Square	Through Hole	5.9 mm	0.232 in	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	Locking Ramp	UL94 V-2	2.5 mm	0.098 in	Brass

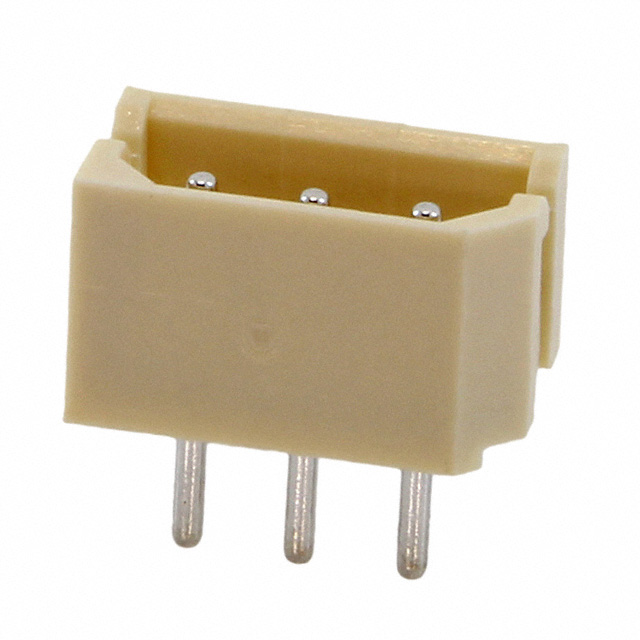

TE Connectivity AMP Connectors 1470224-3	1.27 µm	50 µin	Automotive General Purpose Industrial Medical	Solder		1	250 V	-40 C	105 ░C	Header	50 µin	1.27 µm	Tin	All	Ivory	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	Square	Through Hole	5.9 mm	0.232 in	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	Locking Ramp	UL94 V-2	2.5 mm	0.098 in	Brass
TE Connectivity AMP Connectors 1470224-7	1.27 µm	50 µin	Automotive General Purpose Industrial Medical	Solder	7	1	250 V	-40 C	105 ░C	Header	50 µin	1.27 µm	Tin	All	Ivory	3 A	Nylon 6/6 Polyamide (PA66)	Male Pin	Square	Through Hole	5.9 mm	0.232 in	0.138 in	3.5 mm	Shrouded - 4 Wall	Board to Cable/Wire	Locking Ramp	UL94 V-2	2.5 mm	0.098 in	Brass
