3610S Series
Manufacturer: Bourns Inc.
Beta
⌘K

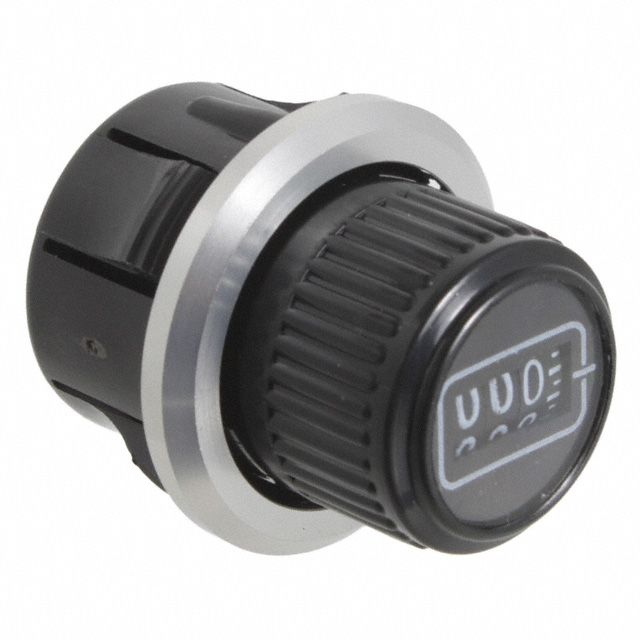

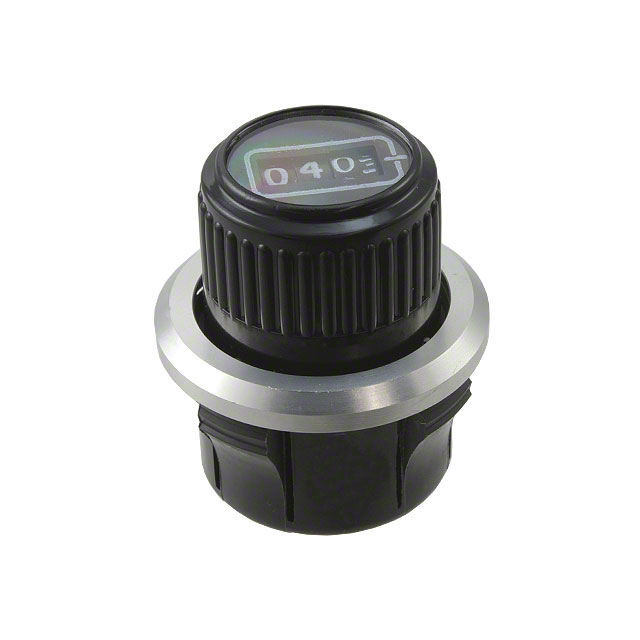

POT 2K OHM 1.5W WIREWOUND LINEAR
| Part | Actuator Type | Temperature Coefficient | Actuator Length [x] | Actuator Length [x] | Number of Gangs | Rotation | Power (Watts) | Resistive Material | Size - Body [diameter] | Size - Body [diameter] | Built in Switch | Mounting Type | Adjustment Type | Tolerance | Number of Turns | Taper | Resistance (Ohms) | Termination Style | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) | Resistance (Ohms) [custom] | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Knob | 50 ppm/░C | 18.8 mm | 0.74 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | 2 kOhms | Solder Hook | 0.875 in | 22.23 mm | |||
 Bourns Inc. | Knob | 50 ppm/░C | 18.8 mm | 0.74 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | Solder Hook | 0.875 in | 22.23 mm | 10k | |||
Bourns Inc. | Knob | 50 ppm/░C | 17.65 mm | 0.695 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | Solder Hook | 0.875 in | 22.23 mm | 500 Ohms | 3/8-32 | ||
Bourns Inc. | Knob | 50 ppm/░C | 17.65 mm | 0.695 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | Solder Hook | 0.875 in | 22.23 mm | 1k | 3/8-32 | ||
Bourns Inc. | Knob | 50 ppm/░C | 17.65 mm | 0.695 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | Solder Hook | 0.875 in | 22.23 mm | 10k | 3/8-32 | ||
Bourns Inc. | Knob | 50 ppm/░C | 18.8 mm | 0.74 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | Solder Hook | 0.875 in | 22.23 mm | 1k | |||
Bourns Inc. | Knob | 50 ppm/░C | 17.65 mm | 0.695 in | 1 | 3600 ° | 1.5 W | Wirewound | 31.5 mm | 1.24 " | None | Panel Mount | User Defined | 5 % | 10 | Linear | 5 kOhms | Solder Hook | 0.875 in | 22.23 mm | 3/8-32 |
