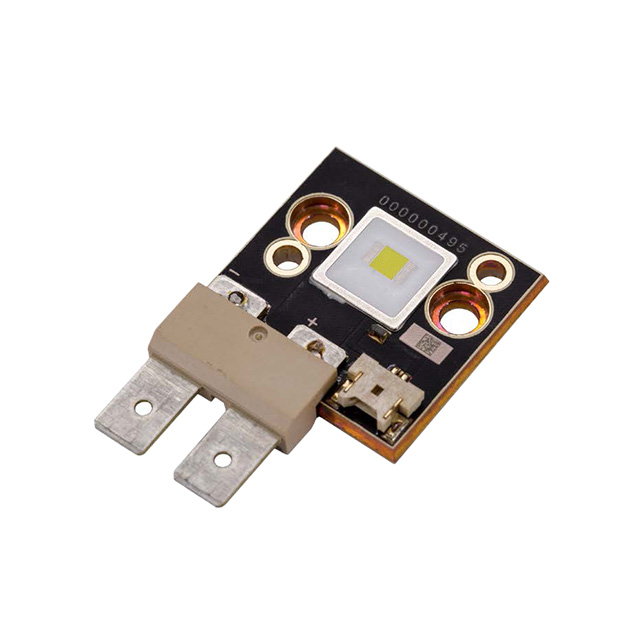

CFT-90 Series

Catalog

LED LIGHTING MODULES COOL WHITE 3680 LM

Part	CRI (Color Rendering Index)	Current - Max [Max]	Height [z]	Type	Temperature - Test	Features	Lumens/Watt @ Current - Test	Color	Configuration	Lens Type	Viewing Angle	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Voltage - Forward (Vf) (Typ)	Current - Test
Luminus Devices Inc. CFT-90-WCS-X11-UA600	70	27 A	3.93 mm	LED Module	90 °C	With Connector	48 lm/W	Cool White	Rectangle	Flat	120 °	3955 lm	3680 lm	3818 lm	6500 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WDS-X11-VA501		27 A	3.93 mm	LED Module	90 °C	With Connector	56 lm/W	Cool White	Rectangle	Flat	120 °	4545 lm	4230 lm	4388 lm	5600 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WDS-X11-UB500	65	27 A	5.7 mm	LED Module	90 °C		61 lm/W	White	Rectangle	Flat	120 °			4800 lm		42 mm	28 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WSS-X11-VB700	70	27 A	3.93 mm	LED Module	90 °C	With Connector	60 lm/W	Cool White	Rectangle	Flat	120 °			4703 lm	7800 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WDS-X11-VB500		27 A	3.93 mm	LED Module	90 °C	With Connector	60 lm/W	Cool White	Rectangle	Flat	120 °			4703 lm	5600 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WCS-X11-UB601	70	27 A	3.93 mm	LED Module	90 °C	With Connector	52 lm/W	Cool White	Rectangle	Flat	120 °	4230 lm	3955 lm	4093 lm	6500 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WSS-X11-VA700	70	27 A	3.93 mm	LED Module	90 °C	With Connector	56 lm/W	Cool White	Rectangle	Flat	120 °	4545 lm	4230 lm	4388 lm	7800 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
Luminus Devices Inc. CFT-90-WCS-X11-UA601	70	27 A	3.93 mm	LED Module	90 °C	With Connector	48 lm/W	Cool White	Rectangle	Flat	120 °	3955 lm	3680 lm	3818 lm	6500 K	28 mm	26.75 mm	3 mm	3 mm	3.5 V	22.5 A
