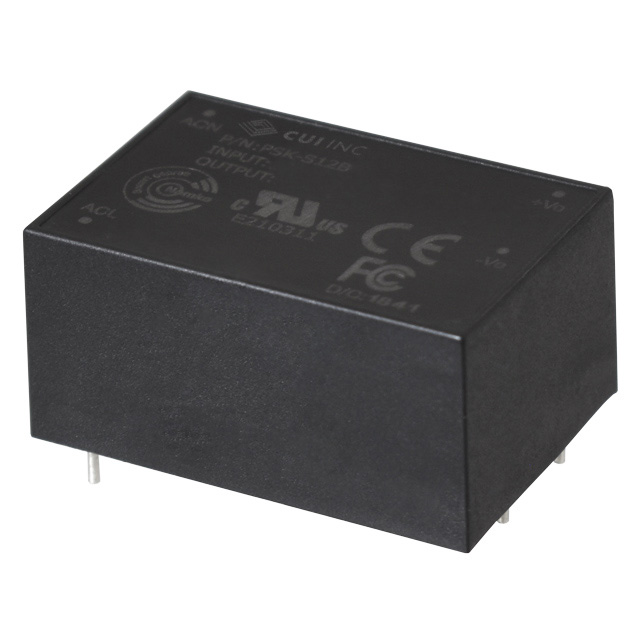

PSK-S12 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER MODULES AC-DC, 12 W, 12 VDC, SINGLE OUTPUT, ENCAPSULATED
| Part | Mounting Type | Standard Number | Efficiency | Type | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Line Regulation | Approval Agency | Current - Output (Max) [Max] | Number of Outputs | Applications | Features | Load Regulation | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 62368-1 | 85 % | Enclosed | 12 W | 90 VAC 120 VDC | 264 VAC 370 VDC | 1 % | CB Scheme EN FCC IEC UL | 1 A | 1 | Household Appliances ITE (Commercial) | Universal Input | ±1% | 40.6 mm | 1.1 in | 19.6 mm | 1.6 " | 27.9 mm | 0.77 in | 4-DIP Module | 75 °C | -40 °C | 12 V | |
 CUI Inc. | Through Hole | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 62368-1 | 80 % | Enclosed | 10 W | 90 VAC 120 VDC | 264 VAC 370 VDC | 1 % | CB Scheme EN FCC IEC UL | 2 A | 1 | Household Appliances ITE (Commercial) | Universal Input | ±1% | 40.6 mm | 1.1 in | 19.6 mm | 1.6 " | 27.9 mm | 0.77 in | 4-DIP Module | 75 °C | -40 °C | 5 V | |
CUI Inc. | Through Hole | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 62368-1 | 85 % | Enclosed | 12 W | 90 VAC 120 VDC | 264 VAC 370 VDC | 1 % | CB Scheme EN FCC IEC UL | 0.8 A | 1 | Household Appliances ITE (Commercial) | Universal Input | 40.6 mm | 1.1 in | 19.6 mm | 1.6 " | 27.9 mm | 0.77 in | 4-DIP Module | 75 °C | -40 °C | 15 V | 1 % |
