044474 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 10POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Features	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Shrouding	Contact Shape	Insulation Color	Connector Type	Contact Material	Fastening Type	Applications	Material Flammability Rating	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Rows	Number of Positions	Style	Insulation Height	Insulation Height

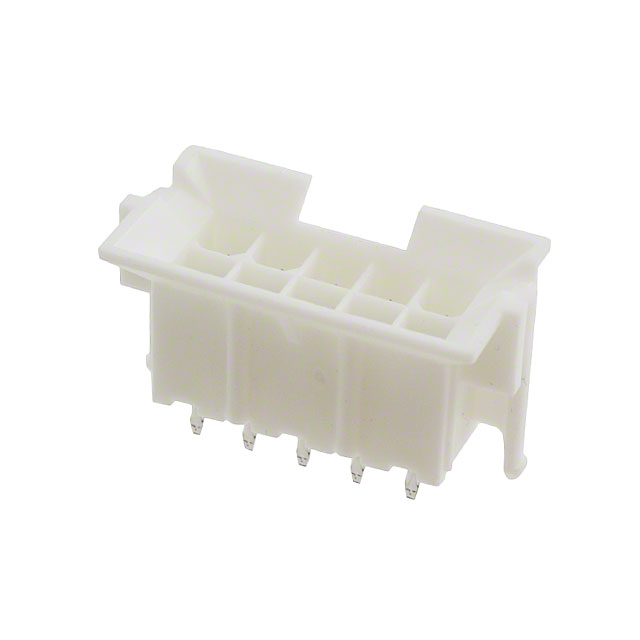

Molex 0444741021	2.54 µm	100 µin	Male Pin	Board Guide	4.2 mm	0.165 in	All	Through Hole	Shrouded - 4 Wall	Square	Natural	Header	Copper Alloy	Latch Holder	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Solder	4.2 mm	0.165 in	2.54 çm	100 çin	Tin	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6	2	10	Board to Board Cable	14.1 mm	0.555 in
Molex 0444742411	2.54 µm	100 µin	Male Pin	Board Guide	4.2 mm	0.165 in	All	Through Hole	Shrouded - 4 Wall	Square	Natural	Header	Copper Alloy	Latch Holder	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-2	Solder	4.2 mm	0.165 in	2.54 çm	100 çin	Tin	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6	2	24	Board to Board Cable	14.1 mm	0.555 in
Molex 0444745000	2.54 µm	100 µin	Male Pin	Board Guide	4.2 mm	0.165 in	All	Through Hole	Shrouded - 4 Wall	Square	Natural	Header	Copper Alloy	Latch Holder	Automotive General Purpose Industrial Medical Telecommunications	UL94 V-0	Solder	4.2 mm	0.165 in	2.54 çm	100 çin	Tin	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6	2	14	Board to Board Cable	14.1 mm	0.555 in
