MS3121F14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 19POS GOLD CRIMP

Part	Primary Material	Shell Finish	Connector Type	Grade	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Contact Finish - Mating	Features	Applications	Shell Material	Fastening Type	Ingress Protection	Contact Material	Orientation	Qualification	Color	Mounting Type	Insert Material	Backshell Material	Plating	Shielding	Shell Size - Insert Width	Shell Size - Insert Length	Voltage Rating	Current Rating Options	Current Rating

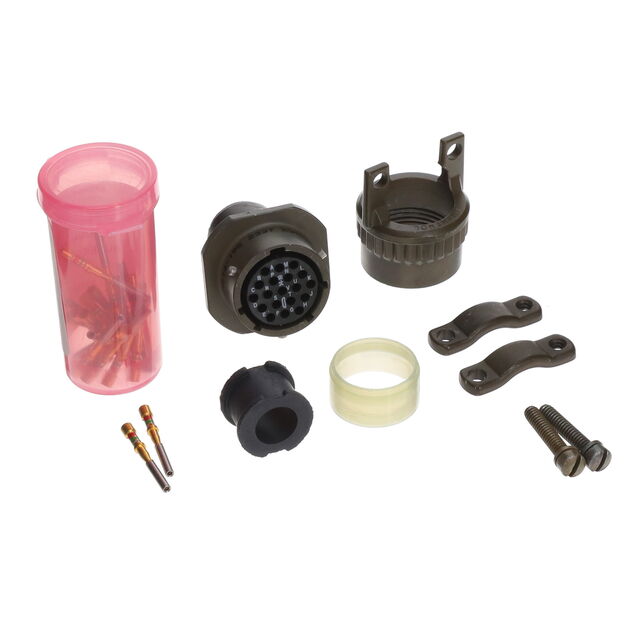

Amphenol Aerospace Operations MS3121F14-19S	Metal	Cadmium Olive Drab Chromate	Female Sockets Receptacle	Military	19	14 S	19	125 °C	-55 °C	Crimp	Gold	Backshell Cable Clamp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Bayonet Lock	Environment Resistant	Copper Alloy	N (Normal)	MIL-DTL-26482 Series I	Olive Drab	Free Hanging (In-Line)	Neoprene	Aluminum	Olive Drab Chromate over Cadmium	Unshielded
Amphenol Aerospace Operations MS3121F14-19PW	Metal	Cadmium Olive Drab Chromate	Male Pins Receptacle	Military	19	14 S	19	125 °C	-55 °C	Crimp	Gold	Backshell Cable Clamp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Bayonet Lock	Environment Resistant	Copper Alloy	W	MIL-DTL-26482 Series I	Olive Drab	Free Hanging (In-Line)	Neoprene	Aluminum	Olive Drab Chromate over Cadmium	Unshielded
Amphenol Aerospace Operations MS3121F14-12P
Amphenol Aerospace Operations MS3121F14-18P(LC)
Amphenol Aerospace Operations MS3121F14-12S	Metal	Cadmium Olive Drab Chromate	Female Sockets Receptacle	Military			12	125 °C	-55 °C	Crimp	Gold	Backshell Cable Clamp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Bayonet Lock	Environment Resistant	Copper Alloy	N (Normal)	MIL-DTL-26482 Series I	Olive Drab	Free Hanging (In-Line)	Neoprene			Unshielded	12 mm	14 mm	600 V	13A 7.5A
Amphenol Aerospace Operations MS3121F14-15S(LC)

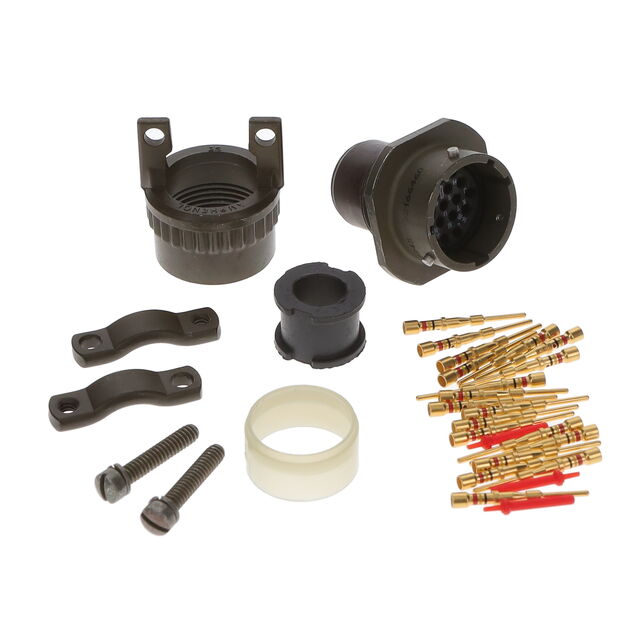

Amphenol Aerospace Operations MS3121F14-18P	Metal	Cadmium Olive Drab Chromate	Male Pins Receptacle	Military	18	14 S	18	125 °C	-55 °C	Crimp	Gold	Backshell Cable Clamp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Bayonet Lock	Environment Resistant	Copper Alloy	N (Normal)	MIL-DTL-26482 Series I	Olive Drab	Free Hanging (In-Line)	Neoprene			Unshielded			600 V		7.5 A
Amphenol Aerospace Operations MS3121F14-12P

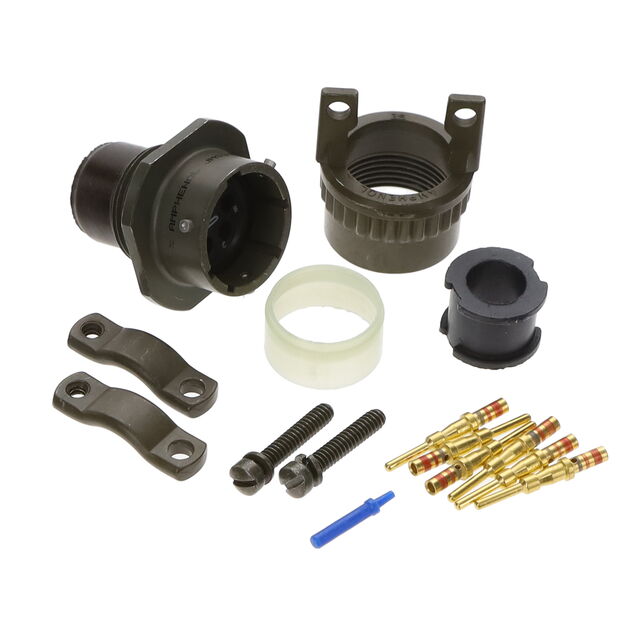

Amphenol Aerospace Operations MS3121F14-5P	Metal	Cadmium Olive Drab Chromate	Male Pins Receptacle	Military			5	125 °C	-55 °C	Crimp	Gold	Backshell Cable Clamp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Bayonet Lock	Environment Resistant	Copper Alloy	N (Normal)	MIL-DTL-26482 Series I	Olive Drab	Free Hanging (In-Line)	Neoprene			Unshielded	5 mm	14 mm	1000 V		13 A
Amphenol Aerospace Operations MS3121F14-15S
