WR9QF550 Series

Catalog

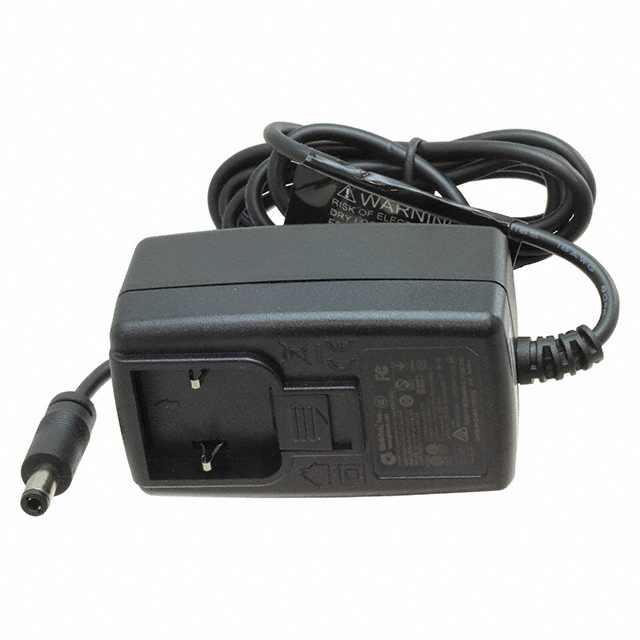

AC/DC WALL MOUNT ADAPTER 11V 6W

Part	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Input Type	Applications	Standard Number	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Input Connector	Region Utilized	Current - Output (Max) [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption	Form	Polarization	Approval Agency

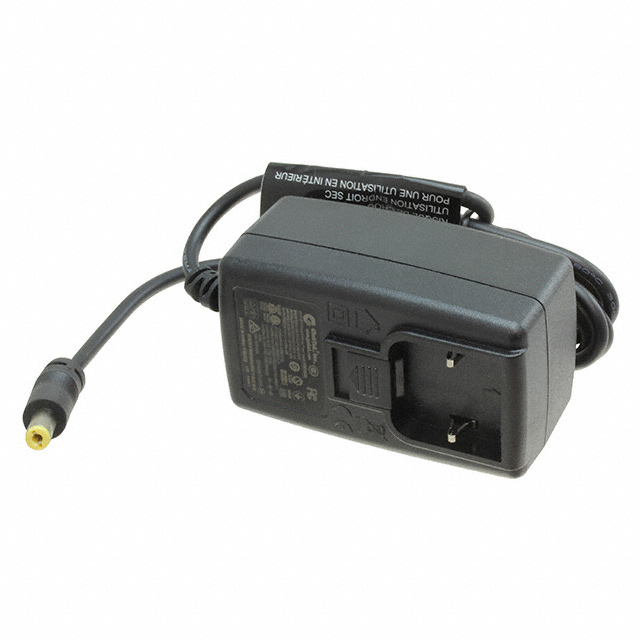

GlobTek, Inc. WR9QF550CCPCIMCCR6B	Level VI	-20 ░C	50 °C	11 V	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	6 W	264 VAC	90 VAC	1.2 m	47.2 in	Multi-Blade (Sold Separately)	International	540 mA	11 mm	2.1 mm 5.5 mm	Barrel Plug	2.91 in	43.5 mm	36.8 mm	1.71 "	1.45 in	74 mm	75 mW	Wall Mount	Positive Center	CB CCC CE cETLus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI

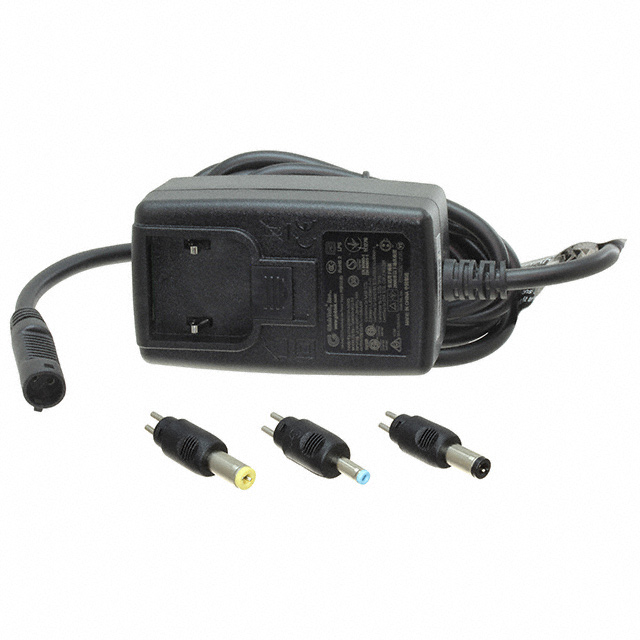

GlobTek, Inc. WR9QF550T00CIMCCR6B	Level VI	-20 ░C	50 °C	11 V	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	6 W	264 VAC	90 VAC	1.5 m	59 in	Multi-Blade (Sold Separately)	International	540 mA			Barrel Plug Kit (1.3mm x 3.5mm	2.91 in	43.5 mm	36.8 mm	1.71 "	1.45 in	74 mm	75 mW	Wall Mount		CB CCC CE cETLus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI
GlobTek, Inc. WR9QF550LCPCIMCCR6B	Level VI	-20 ░C	50 °C	11 V	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	6 W	264 VAC	90 VAC	1.5 m	59 in	Multi-Blade (Sold Separately)	International	540 mA	11 mm	2.5 mm 5.5 mm	Barrel Plug	2.91 in	43.5 mm	36.8 mm	1.71 "	1.45 in	74 mm	75 mW	Wall Mount	Positive Center	CB CCC CE cETLus EAC LPS PSE RCM S-Mark UkrSEPRO VCCI
