726-106 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 106POS 0.125

Part	Termination Rows	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Card Type	Gender	Number of Positions/Bay/Row [custom]	Mounting Type	Read Out	Material - Insulation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Number of Positions	Termination
EDAC Inc. 726-106-541-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit Wire Wrap
EDAC Inc. 726-106-527-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit
EDAC Inc. 726-106-525-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit
EDAC Inc. 726-106-540-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit Wire Wrap

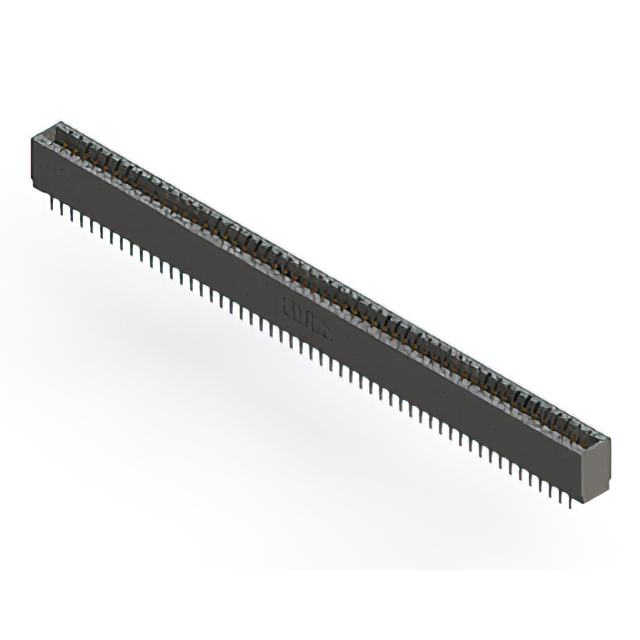

EDAC Inc. 726-106-520-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit
EDAC Inc. 726-106-553-201	2	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	0.76 Ám	30 Áin	2	Non Specified - Dual Edge	Female	53	Through Hole	Dual	Polyester Thermoplastic	Copper Alloy	-40 °C	105 ░C	Gold	Black	106	Press-Fit Wire Wrap
