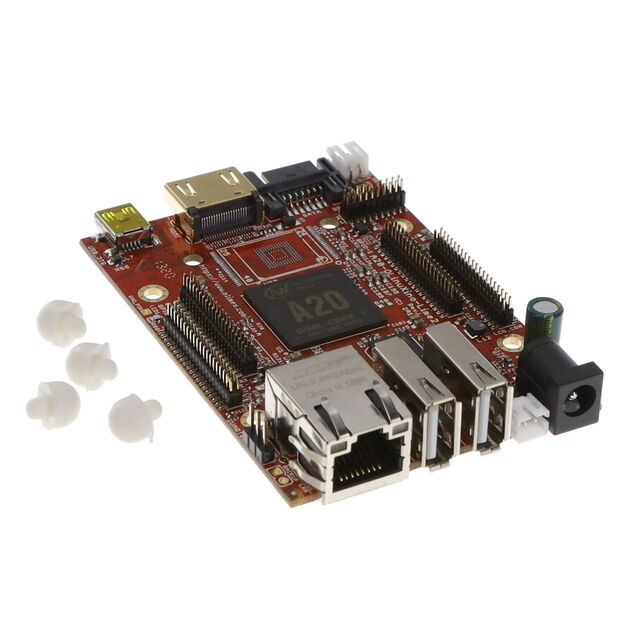

A20-OLINUXINO Series
Manufacturer: Olimex LTD
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SBC 1.0GHZ 2 CORE 1GB/0GB RAM
| Part | Number of Cores | Core Processor | Expansion Site/Bus | USB | USB OTG Count | Contents | Operating Temperature (Min) | Operating Temperature (Max) | Ethernet Speed Options | Ethernet Ports | Video Outputs | RAM Installed | RAM Capacity | Watchdog Timer | Size / Dimension Width | Size / Dimension Length | Storage Interface | Speed | Ethernet Connector | USB Type‑A Count | Ethernet Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Olimex LTD | 2 | ARM Cortex-A7 | Audio GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | HDMI Cable | -40 °C | 85 °C | 1000Mbps 100Mbps | 1 | HDMI VGA | 0 GB | 1 GB | No | 3.25 in | 5.6 in | eMMC Flash microSD SATA HDD | 1 GHz | |||
 Olimex LTD | 2 | ARM Cortex-A7 | Audio GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | HDMI Cable | -40 °C | 85 °C | 1000Mbps 100Mbps | 1 | HDMI VGA | 0 GB | 1 GB | No | 3.25 in | 5.6 in | microSD SATA HDD | 1 GHz | |||
 Olimex LTD | 4 | ARM Cortex-A53 | GPIO microSD MIPI CSI MIPI DSI SPI UART | micro USB USB OTG USB Type-A | 1 count | -40 °C | 85 °C | 1000Mbps 100Mbps 10Mbps | HDMI MIPI-CSI MIPI-DSI | 0 GB | 2 GB | No | 2.5 in | 3.5 in | eMMC microSD SPI | 1.2 GHz | GbE | 1 count | |||
 Olimex LTD | 4 | ARM Cortex-A53 | Audio GPIO microSD SPI UART | micro USB USB OTG USB Type-A | 1 count | -40 °C | 85 °C | 1000Mbps 100Mbps 10Mbps | HDMI LCD MIPI-DSI | 0 GB | 1 GB | No | 2.461 in | 3.543 in | microSD | 1.2 GHz | GbE | 1 count | |||
 Olimex LTD | 4 | ARM Cortex-A53 | Audio GPIO microSD SPI UART | micro USB USB OTG USB Type-A | 1 count | -40 °C | 85 °C | 1000Mbps 100Mbps 10Mbps | HDMI LCD MIPI-DSI | 0 GB | 1 GB | No | 2.461 in | 3.543 in | eMMC Flash microSD | 1.2 GHz | GbE | 1 count | |||
 Olimex LTD | 4 | ARM Cortex-A53 | Audio GPIO microSD SPI UART | micro USB USB OTG USB Type-A | 1 count | -40 °C | 85 °C | 1000Mbps 100Mbps 10Mbps | HDMI LCD MIPI-DSI | 0 GB | 1 GB | No | 2.461 in | 3.543 in | eMMC Flash microSD | 1.2 GHz | GbE | 1 count | |||
 Olimex LTD | 2 | ARM Cortex-A7 | Audio GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | HDMI Cable | -40 °C | 85 °C | 1000Mbps 100Mbps | 1 | HDMI VGA | 0 GB | 1 GB | No | 3.25 in | 5.6 in | microSD NAND - Flash SATA HDD | 1 GHz | |||
 Olimex LTD | 2 | ARM Cortex-A7 | GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | HDMI Cable | -40 °C | 85 °C | 1000Mbps 100Mbps | 1 | HDMI | 0 GB | 512 MB | No | 2.362 in | 3.307 in | eMMC microSD NAND - Flash SATA | 1 GHz | |||
 Olimex LTD | 2 | ARM Cortex-A7 | GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | HDMI Cable | -40 °C | 85 °C | 1000Mbps 100Mbps | 1 | HDMI | 0 GB | 512 MB | No | 2.362 in | 3.307 in | eMMC microSD NAND - Flash SATA | 1 GHz | |||
 Olimex LTD | 2 | ARM Cortex-A7 | GPIO microSD SATA SPI UART | USB Host USB OTG | 1 count | -40 °C | 85 °C | 1 | HDMI | 0 GB | 1 GB | No | 2.362 in | 3.307 in | microSD NAND - Flash SATA SPI | 1 GHz | GbE |
