078234 Series

Manufacturer: Molex

Catalog

CONN HEADER I-TRAC 2POS EDGE MNT

Part	Contact Layout, Typical	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Connector Style	Mounting Type	Termination	Connector Type	Current Rating (Amps)	Number of Rows	Contact Finish	Features	Material Flammability Rating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Number of Columns

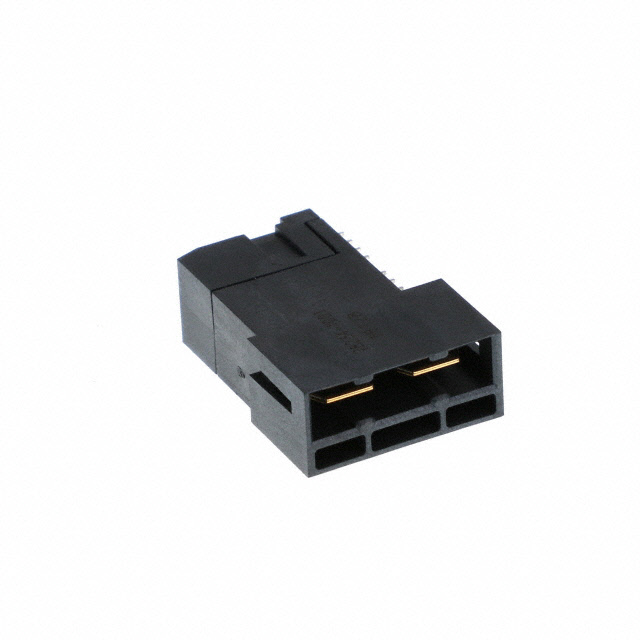

Molex 0782341001	2 Power	0.76 Ám	30 Áin	2	Black	Hold Down Left I-Trac	Board Edge Right Angle Through Hole	Press-Fit	Header Male Blades	80 A	2	Gold	Board Guide	UL94 V-0	250 VDC	85 °C	-20 C	All
Molex 0782341022	4 Power	0.76 Ám	30 Áin	4	Black	Hold Down Left I-Trac	Board Edge Right Angle Through Hole	Press-Fit	Header Male Blades	80 A	2	Gold	Board Guide	UL94 V-0	250 VDC	85 °C	-20 C	All	2
Molex 0782342001	2 Power	0.76 Ám	30 Áin	2	Black	Hold Down Right I-Trac	Board Edge Right Angle Through Hole	Press-Fit	Header Male Blades	80 A	2	Gold	Board Guide	UL94 V-0	250 VDC	85 °C	-20 C	All
