SFW24R Series

Catalog

CONN FFC FPC BOTTOM 24POS 1MM RA

Part	Housing Color	Mating Cycles	Voltage Rating	Cable End Type	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Features	Connector/Contact Type	Termination	FFC, FCB Thickness	Contact Material	Mounting Type	Number of Positions	Housing Material	Contact Finish	Flat Flex Type	Actuator Material	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

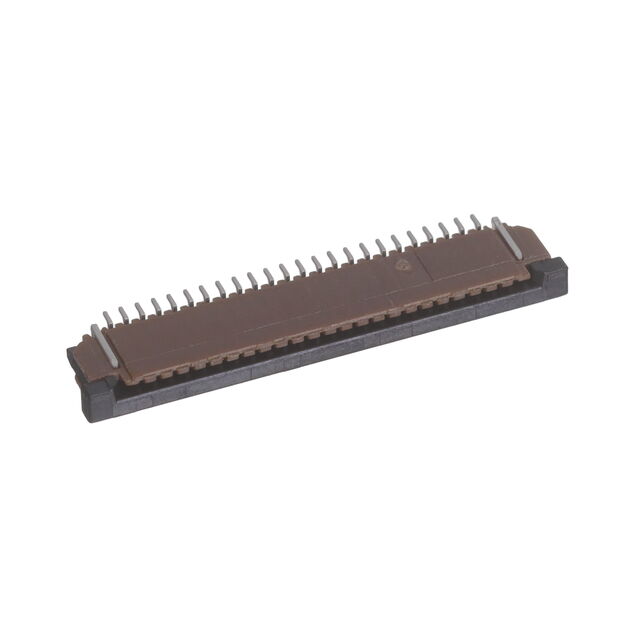

Amphenol ICC (FCI) SFW24R-1STE1LF	Brown	20	100 V	Straight	0.106 in	2.7 mm	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	Solder	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0

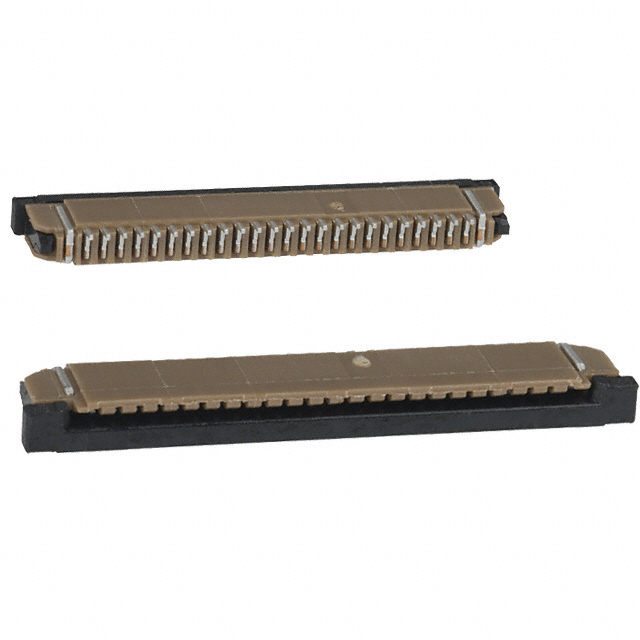

Amphenol ICC (FCI) SFW24R-2STE1	Brown			Straight Tapered	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Top	Solder		Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock			UL94 V-0	Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW24R-4STE1LF	Black	20	100 V	Notched Tapered	0.106 in	2.7 mm	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	Solder		Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Brown	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW24R-1STE9LF	Brown	20	100 V	Straight Tapered	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Bottom	Solder		Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW24R-6STE1LF	Brown	10	100 V	Tapered	0.106 in	2.7 mm	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	Solder	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin	CIC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Black
Amphenol ICC (FCI) SFW24R-3STAE1LF	Black	20	100 V	Notched	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Bottom	Solder	0.33 mm	Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Gold	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Brown
Amphenol ICC (FCI) SFW24R-4STE5LF	Black		100 V	Notched	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Top	Solder		Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Brown	0.3 mm	0.33 mm

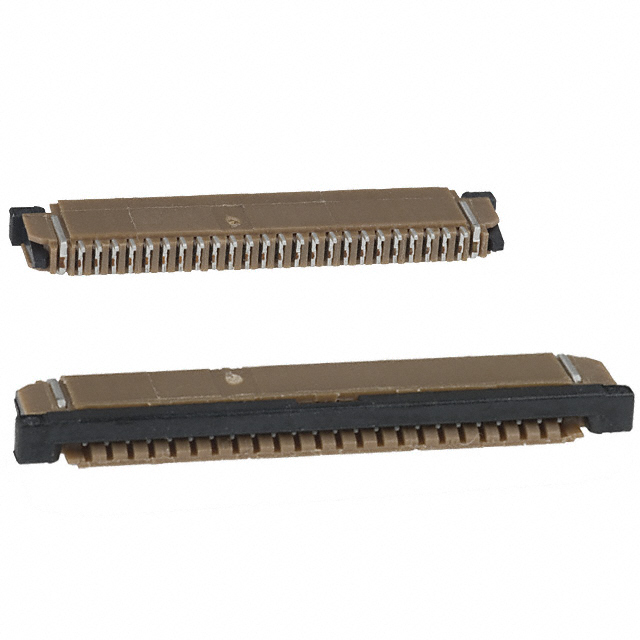

Amphenol ICC (FCI) SFW24R-1STE1	Brown			Straight Tapered	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Bottom	Solder		Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock			UL94 V-0	Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW24R-2STAE1LF	Brown	20	100 V	Tapered	0.106 in	2.7 mm	1 mm	0.039 in		Contacts Top	Solder	0.33 mm	Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Gold	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0	Black
Amphenol ICC (FCI) SFW24R-1STAE1LF	Brown	20	100 V	Straight	0.106 in	2.7 mm	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)	Contacts Bottom	Solder	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	24	Polyphenylene Sulfide (PPS) Glass Filled	Gold	FPC	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	-55 C	105 ░C	UL94 V-0
