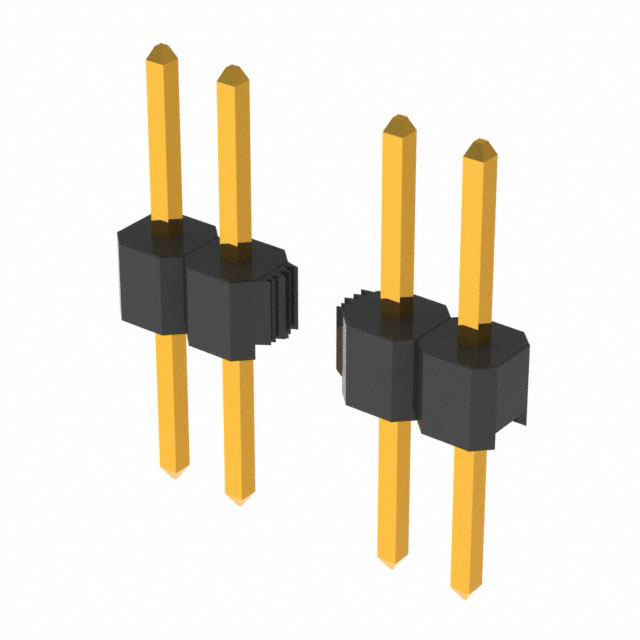

NREC031 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 31POS 2.54MM
| Part | Material Flammability Rating | Insulation Color | Contact Type | Number of Rows | Fastening Type | Insulation Material | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Connector Type | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Style | Number of Positions Loaded | Shrouding | Number of Positions [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Contact Material | Mounting Type | Current Rating (Amps) | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | UL94 V-0 | Black | Male Pin | 1 | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.23 in | 5.84 mm | 0.098 " | 2.5 mm | Header Breakaway | 5.84 mm | 0.23 " | Tin | Board to Board Cable | All | Unshrouded | 31 | Solder | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.558 in | 14.18 mm | Brass | Through Hole | 3 A | Square |
