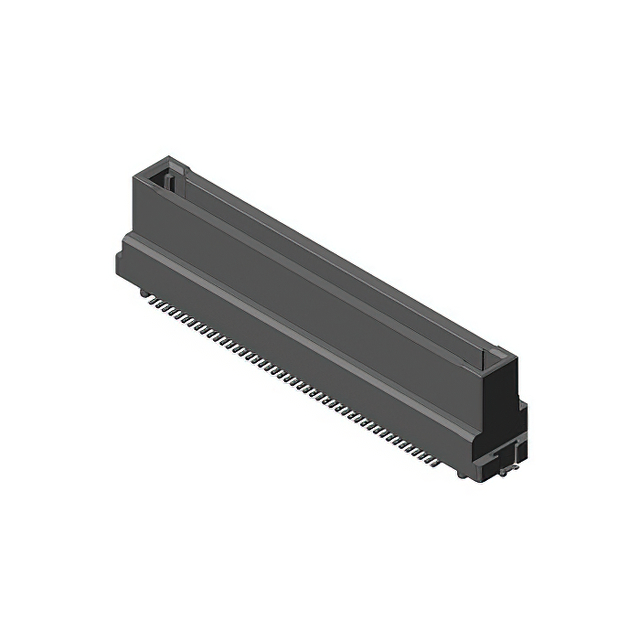

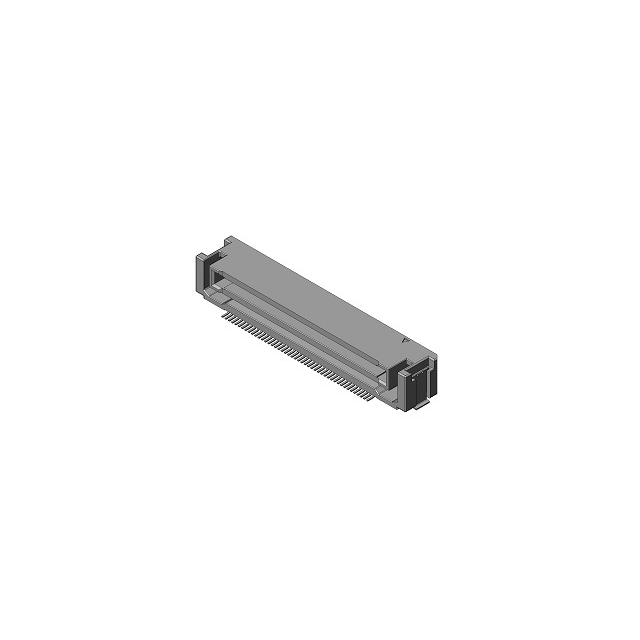

AX01R090 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RIGID SIDE STR 90 POS
| Part | Number of Rows [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Finish | Mated Stacking Heights | Connector Type | Features | Pitch | Pitch | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 2 | Surface Mount | 0.1 Ám | 4 Áin | 90 | Gold | 10 mm 16 mm 22 mm | Plug Outer Shroud Contacts | Board Guide Solder Retention | 0.64 mm | 0.025 in | 0.339 in | 8.6 mm |
