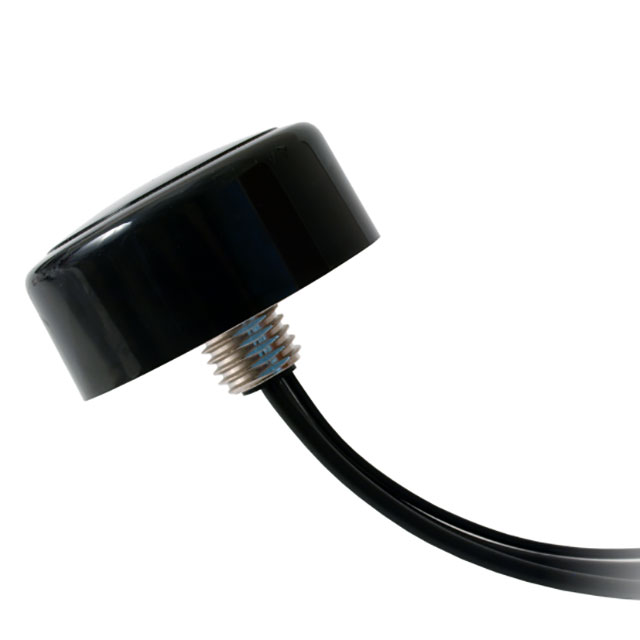

H1S600000006 Series
Manufacturer: Unictron Technologies Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
3-IN-1 COMBO EXTERNAL ANTENNA
| Part | Frequency (Center/Band) | Frequency (Center/Band) - 11 | Frequency (Center/Band) - 1 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 8 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 10 | Frequency (Center/Band) - 9 | Frequency (Center/Band) - 5 | Frequency (Center/Band) - 7 | Frequency (Center/Band) - 6 | Frequency (Center/Band) - 12 | Frequency (Center/Band) - 2 | Number of Bands | Height (Max) | Frequency Group | Return Loss | Return Loss | VSWR | Gain | Termination Type | Antenna Type | Features | Applications | Frequency Range (Band 10) Maximum | Frequency Range (Band 8) Maximum | Frequency Range (Band 1) Minimum | Frequency Range (Band 10) Minimum | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 9) Maximum | Frequency Range (Band 7) Minimum | Frequency Range (Band 9) Minimum | Frequency Range (Band 3) Minimum | Frequency Range (Band 5) Maximum | Frequency Range (Band 4) Maximum | Frequency Range (Band 2) Maximum | Frequency Range (Band 7) Maximum | Frequency Range (Band 5) Minimum | Frequency Range (Band 8) Minimum | Frequency Range (Band 6) Minimum | Frequency Range (Band 4) Minimum | Frequency Range (Band 6) Maximum | Frequency Range (Band 3) Maximum | RF Family/Standard | Ingress Protection | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Unictron Technologies Corporation | 1.561GHz 1.575GHz 1.602GHz 1.795GHz 1.92GHz 2.045GHz 2.495GHz 2.4GHz 3.55GHz 5.8GHz 761MHz 892MHz | 3.55 GHz | 761 MHz | 1.561 GHz | 2.045 GHz | 1.575 GHz | 2.495 GHz | 2.4 GHz | 1.602 GHz | 1.92 GHz | 1.795 GHz | 5.8 GHz | 892 MHz | 14 | 1.492 in | Wide Band | -10dB -4dB -5.5dB -6dB -8dB | -10 dB -8 dB -6 dB -5.5 dB -4 dB | 2 2.5 3 3.5 4.5 | 1.06 dBi 1.21 dBi 1.44 dBi 2.8 dBi 7.27 dBi 8.14 dBi 8.21 dBi 8.72 dBi | SMA Male | Module | 300mm Cable | 5G BEIDOU DCS Galileo GLONASS GNSS GPS GSM LTE PCS UMTS Wi-Fi | 3.8 GHz | 2.17 GHz | 698 MHz | 3.3 GHz | 824 MHz | 824 MHz | 2.69 GHz | 1.85 GHz | 2.3 GHz | 1.559 GHz | 1.607 GHz | 1.576 GHz | 960 MHz | 1.99 GHz | 1.597 GHz | 1.92 GHz | 1.71 GHz | 1.574 GHz | 1.88 GHz | 1.563 GHz | Cellular Navigation WiFi | IPX7 | Screw Mount |
