TCS20D Series

Catalog

MAGNETIC SWITCH OMNIPOLAR SOT23F

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Technology	Test Condition	Package / Case	Current - Output (Max) [Max]	Polarization	Current - Supply (Max)	Sensing Range	Function

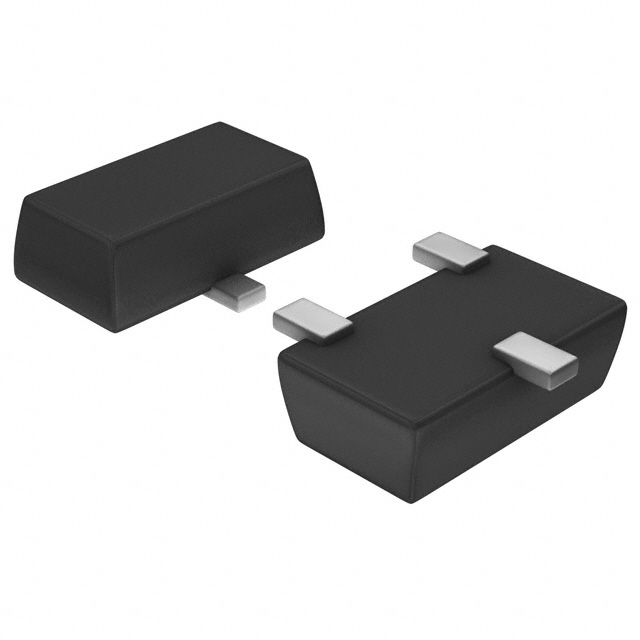

Toshiba Semiconductor and Storage TCS20DLR,LF	Surface Mount	5.5 V	2.3 V	85 C	-40 ¯C	Open Drain	SOT-23F	Hall Effect	25 °C	SOT-23-3 Flat Leads	5 mA	North Pole South Pole	1.6 mA	0.9 mT 4.4 mT	Omnipolar Switch
Toshiba Semiconductor and Storage TCS20DPR,LF	Surface Mount	5.5 V	2.3 V	85 C	-40 ¯C	Push-Pull	SOT-23F	Hall Effect	25 °C	SOT-23-3 Flat Leads	5 mA	North Pole South Pole	1.6 mA	0.9 mT 4.4 mT	Omnipolar Switch
